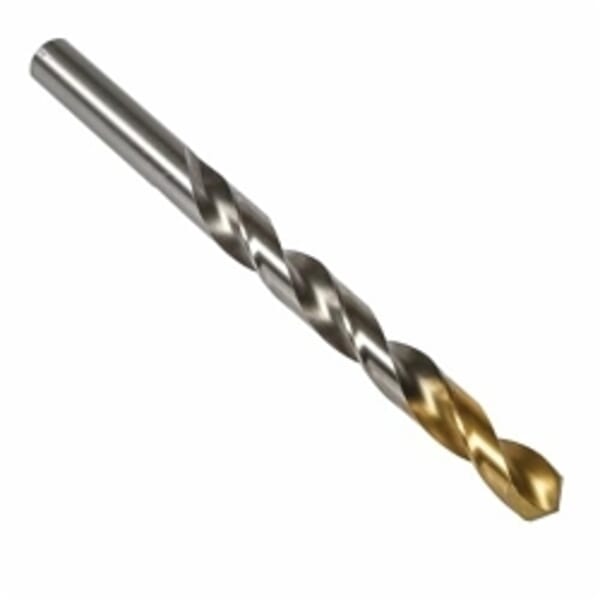

Dormer 6524871 A002S Type N General Purpose Jobber Length Drill Bit, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, 118 deg Point, HSS, TiN Coated

ManufacturerDormer

Part #816024871

MFG #46524871

UPC #7320760673737

Dormer Jobber Length Drill Bit, Type N General Purpose, Series: A002S, Imperial, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, 109 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 69 mm Flute Length, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Gold, Applicable Materials: Aluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite

$5.18

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Aluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite

Color: Gold

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.2656 in

Drill Size - Fraction: 17/64 in

Finish: TiN Coated

Flute Length: 69 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 109 mm

Point Angle: 118 deg

Point Type: Split/Self-Centering

Series: A002S

Shank Type: Straight

Through Coolant (Yes/No): No

Type: Type N General Purpose

Low thrust design self-centering split point for easier penetration
TiN coated tip increases wear resistance and improves tool life
Titanium nitride resists flank and crater wear and has low friction, promoting increased cutting speeds
Web design optimised strength and rigidity, easy to feed
Point design efficient cutting action, reduced axial force, accurate centering

DIN 338

Dormer Jobber Length Drill Bit, Type N General Purpose, Series: A002S, Imperial, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, 109 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 69 mm Flute Length, Straight Shank, 118 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, TiN Coated, Gold, Applicable Materials: Aluminum, Alloy Steel, Copper, Magnetic Soft Steel, Magnesium and Lamellar Graphite
