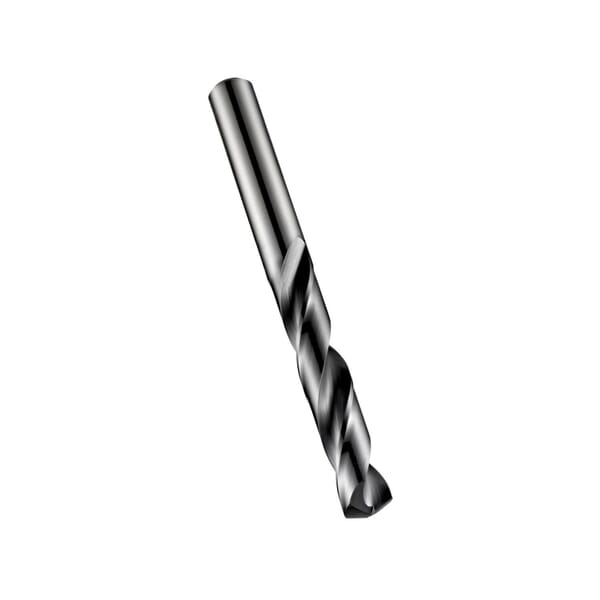

Dormer 5979974 Force X R454 Multi-Application Standard Length Jobber Length Drill Bit, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 140 deg Point, Carbide, TiAlN Coated

ManufacturerDormer

Part #816024029

MFG #0624029

UPC #7320760624029

Dormer Jobber Length Drill Bit, Multi-Application Standard Length, Series: Force X R454, Imperial, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 66 mm Overall Length, 5XD Cutting Depth, 2 Flutes, CTW Flute, 28 mm Flute Length, 6 mm Dia x 36 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, TiAlN Coated, Black/Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened And Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Copper, Brass, Bronze, High Strength Bronze, Aluminum Magnesium Unalloyed and Aluminum Alloyed

$82.98

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Color: Black/Gray

Country of Origin: BR

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.125 in

Drill Size - Fraction: 1/8 in

Finish: TiAlN Coated

Flute Length: 28 mm

Flute Type: CTW

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 66 mm

Point Angle: 140 deg

Point Type: 4-Facet/Self-Centering/Split

Series: Force X R454

Shank Size: 6 mm Dia x 36 mm L

Shank Type: Straight

Through Coolant (Yes/No): No

Type: Multi-Application Standard Length

Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate
TiAlN coating increases wear resistance, improves tool life at high RPM
High productivity in a wide range of materials

For steel machining applications

DIN 6537 L/6535 HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
