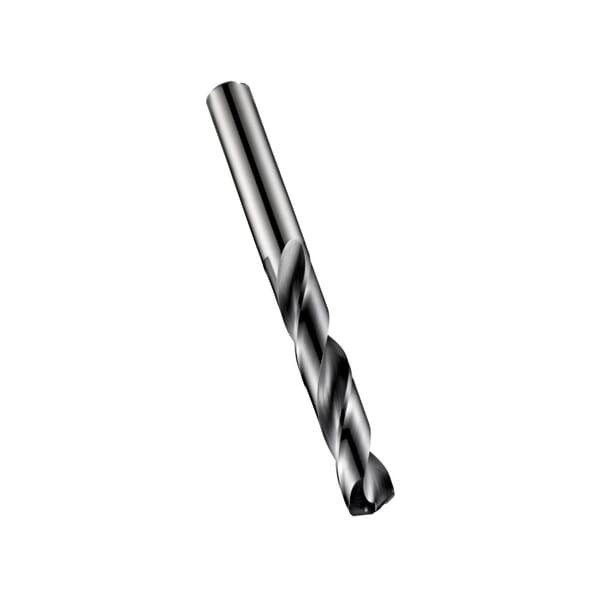

Dormer 5979484 Force X R453 Multi-Application Standard Length Jobber Length Drill Bit, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 140 deg Point, Carbide, TiAlN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 5979484 Force X R453 Multi-Application Standard Length Jobber Length Drill Bit, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 140 deg Point, Carbide, TiAlN Coated

ManufacturerDormer

Part #816023985

MFG #0623985

UPC #7320760623985

Dormer Jobber Length Drill Bit, Multi-Application Standard Length, Series: Force X R453, Imperial, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 91 mm Overall Length, 5XD Cutting Depth, 2 Flutes, CTW Flute, 53 mm Flute Length, 8 mm Dia x 36 mm L Shank, Straight Shank, 140 deg Point, 4-Facet/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Yes Through Coolant, Carbide, TiAlN Coated, Black/Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/ Hardened and Tempered Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Alloy Steel Hardened, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Precipitation Hardened Stainless Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Copper, Brass, Bronze, High Strength Bronze, Unalloyed Aluminum Magnesium and Alloyed Aluminum

$149.50

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Color: Black/Gray

Country of Origin: BR

Cutting Depth: 5XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.2812 in

Drill Size - Fraction: 9/32 in

Finish: TiAlN Coated

Flute Length: 53 mm

Flute Type: CTW

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 91 mm

Point Angle: 140 deg

Point Type: 4-Facet/Self-Centering/Split

Series: Force X R453

Shank Size: 8 mm Dia x 36 mm L

Shank Type: Straight

Through Coolant (Yes/No): Yes

Type: Multi-Application Standard Length

Self-centering 4-facet split point and CTW flute construction for enhanced penetration rate
TiAlN coating increases surface hardness, improves tool life at high RPM
Coolant through clears chips away from the cutting edge
High productivity in a wide range of materials

DIN 6537 L/6535 HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
