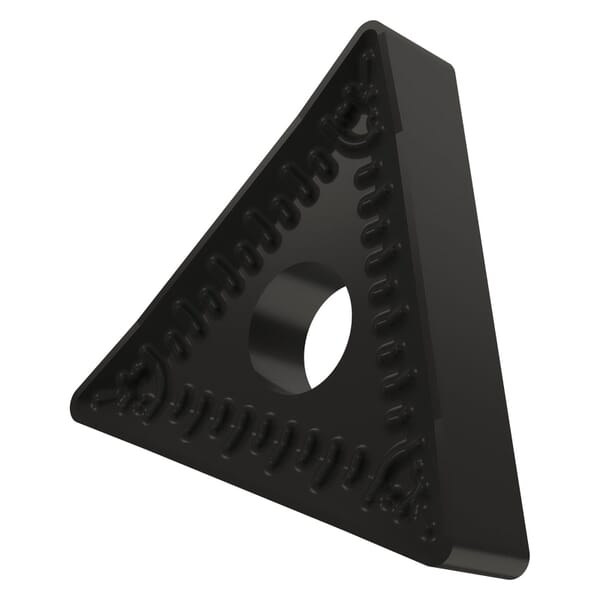

Pramet 6922930 Turning Insert Pramet, ANSI Code: TNMM 433E-DR T9315, TNMM Insert, Material Grade: H, K, P, 433 Insert, Triangular Shape, 22 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816022930

MFG #6922930

UPC #3603603077560

Pramet Turning Insert Pramet, TNMM Insert, 433 Insert, Triangular, 7.3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 3/16 in Thickness, 22 mm Length, 22 Seat, Negative Rake, DR Chipbreaker, 1.2 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: TNMM 433E-DR T9315, ISO Code: TNMM 220412E-DR T9315, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

$12.22

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: TNMM 433E-DR T9315

Chipbreaker: DR

Corner Radius: 1.2 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 5.16 mm

Included Angle: 60 deg

Inscribed Circle: 12.7 mm

Insert Size: 433

Insert Style: TNMM

ISO Code: TNMM 220412E-DR T9315

Length: 22 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 7.3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 22

Shape: Triangular

Thickness: 3/16 in

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut
Rounded edges

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Pramet Turning Insert Pramet, TNMM Insert, 433 Insert, Triangular, 7.3 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 3/16 in Thickness, 22 mm Length, 22 Seat, Negative Rake, DR Chipbreaker, 1.2 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: TNMM 433E-DR T9315, ISO Code: TNMM 220412E-DR T9315, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel
