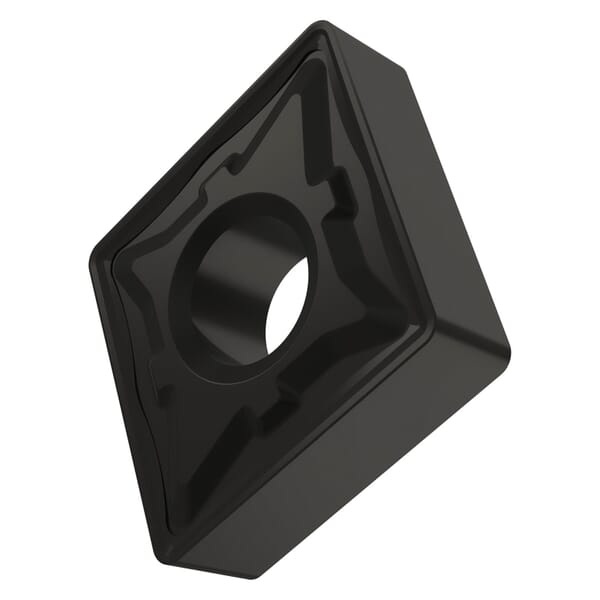

Pramet 6922871 Turning Insert, ANSI Code: CNMG 643-R:T9315, CNMG Insert, Material Grade: H, K, P, 643 Insert, Diamond Shape, 19 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6922871 Turning Insert, ANSI Code: CNMG 643-R:T9315, CNMG Insert, Material Grade: H, K, P, 643 Insert, Diamond Shape, 19 Seat, Negative Rake, For Use On Hardened Steel, Cast Iron and Steel, Carbide, Manufacturers Grade: T9315

ManufacturerPramet

Part #816022871

MFG #6922871

UPC #3603603076976

Pramet Turning Insert, CNMG Insert, 643 Insert, Diamond, 8 mm Maximum Depth of Cut, 19.05 mm Inscribed Circle, 6.35 mm Thickness, 19.3 mm Length, 19 Seat, Negative Rake, R Chipbreaker, 1.2 mm Corner Radius, 7.94 mm Hole Dia, Manufacturers Grade: T9315, ANSI Code: CNMG 643-R:T9315, ISO Code: CNMG 190612E-R:T9315, 80 deg Included Angle, 0 deg Relief Angle, Carbide, MT-CVD-Al2O3 Coated, Material Grade: H, K, P, For Use On: Hardened Steel, Cast Iron and Steel

$23.70

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 643-R:T9315

Chipbreaker: R

Corner Radius: 1.2 mm

Country of Origin: CZ

Finish: MT-CVD-Al2O3 Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 7.94 mm

Included Angle: 80 deg

Inscribed Circle: 19.05 mm

Insert Size: 643

Insert Style: CNMG

ISO Code: CNMG 190612E-R:T9315

Length: 19.3 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 8 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Shape: Diamond

Thickness: 6.35 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

Semi-Roughing and Roughing

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Specification Sheet

Manufacturer Name: Dormer Pramet

ANSI Code: CNMG 643-R:T9315

Chipbreaker: R

Corner Radius: 1.2 mm

Country of Origin: CZ

Finish: MT-CVD-Al2O3 Coated

For Use On: Hardened Steel, Cast Iron and Steel

Hole Diameter: 7.94 mm

Included Angle: 80 deg

Inscribed Circle: 19.05 mm

Insert Size: 643

Insert Style: CNMG

ISO Code: CNMG 190612E-R:T9315

Length: 19.3 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9315

Material: Carbide

Material Grade: H, K, P

Maximum Depth of Cut: 8 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 19

Shape: Diamond

Thickness: 6.35 mm

T9315 grade functionally gradient substrate with fine structure
Relatively low cobalt content
Thick MT-CVD coating with a dominant Al2O3 layer
Highly versatile material with a balanced ratio of abrasion resistance and operative reliability
Special surface finish for coating
High cutting speeds
Continuous to slightly interrupted cut

Semi-Roughing and Roughing

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Specification Sheet
