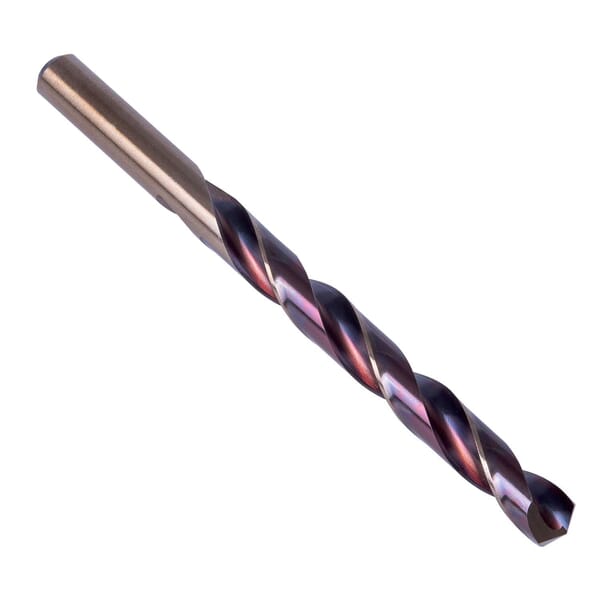

Precision Twist Drill 5996334 HX15 General Purpose Heavy Duty Jobber Length Drill Bit, D Drill - Letter, 0.246 in Drill - Decimal Inch, 135 deg Point, HSS, Purple/Bronze

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Precision Twist Drill 5996334 HX15 General Purpose Heavy Duty Jobber Length Drill Bit, D Drill - Letter, 0.246 in Drill - Decimal Inch, 135 deg Point, HSS, Purple/Bronze

ManufacturerPrecision Twist Drill

Part #816022204

MFG #5996334

UPC #086071222046

Precision Twist Drill Jobber Length Drill Bit, General Purpose Heavy Duty, Series: HX15, Imperial, D Drill - Letter, 0.246 in Drill - Decimal Inch, 4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-3/4 in Flute Length, 0.2461 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Purple/Bronze, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Lamellar Graphite, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Martensitic, Titanium Unalloyed, Alloyed Titanium and Nickel Unalloyed

$4.02

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.246 in

Drill Size - Letter: D

Finish: Purple/Bronze

Flute Length: 2-3/4 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 4 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: HX15

Shank Size: 0.2461 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: General Purpose Heavy Duty

Low thrust design self-centering split point for easier penetration
Stronger and more rigid
Unique surface treatment for improved wear resistance in hard ferrous alloys

ANSI Specified|CSA Approved

For general drilling applications

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.246 in

Drill Size - Letter: D

Finish: Purple/Bronze

Flute Length: 2-3/4 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 4 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: HX15

Shank Size: 0.2461 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: General Purpose Heavy Duty

Low thrust design self-centering split point for easier penetration
Stronger and more rigid
Unique surface treatment for improved wear resistance in hard ferrous alloys

ANSI Specified|CSA Approved

For general drilling applications

Specification Sheet

Catalog
