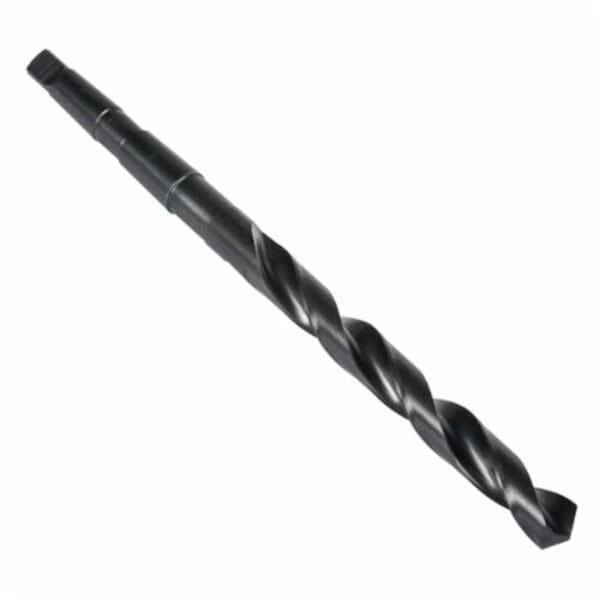

Precision Twist Drill 5999483 209 General Purpose Standard Length Taper Shank Drill Bit, 1-17/64 in Drill - Fraction, 1.2656 in Drill - Decimal Inch, #4 Morse Taper Shank Taper, HSS

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Precision Twist Drill 5999483 209 General Purpose Standard Length Taper Shank Drill Bit, 1-17/64 in Drill - Fraction, 1.2656 in Drill - Decimal Inch, #4 Morse Taper Shank Taper, HSS

ManufacturerPrecision Twist Drill

Part #816020117

MFG #5999483

UPC #086071201171

Precision Twist Drill Taper Shank Drill Bit, General Purpose Standard Length, Series: 209, Imperial, 1-17/64 in Drill - Fraction, 1.2656 in Drill - Decimal Inch, 14-1/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 8-1/2 in Flute Length, #4 Morse Taper Shank Taper Designation, 118 deg Point, Conventional Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Oxide, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

$234.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 1.2656 in

Drill Size - Fraction: 1-17/64 in

Finish: Steam Oxide

Flute Length: 8-1/2 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 14-1/8 in

Point Angle: 118 deg

Point Type: Conventional

Series: 209

Shank Taper Designation: #4 Morse Taper

Through Coolant (Yes/No): No

Type: General Purpose Standard Length

Steam oxide for increased tool life and lubricity
HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
A medium alloyed high speed steel that has good machinability and good performance

For general drilling applications

ANSI Specified|CSA Approved

Catalog

Manufacturer Name: Dormer Pramet

Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials, Hard Materials and Graphite

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 1.2656 in

Drill Size - Fraction: 1-17/64 in

Finish: Steam Oxide

Flute Length: 8-1/2 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 14-1/8 in

Point Angle: 118 deg

Point Type: Conventional

Series: 209

Shank Taper Designation: #4 Morse Taper

Through Coolant (Yes/No): No

Type: General Purpose Standard Length

Steam oxide for increased tool life and lubricity
HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
A medium alloyed high speed steel that has good machinability and good performance

For general drilling applications

ANSI Specified|CSA Approved

Catalog
