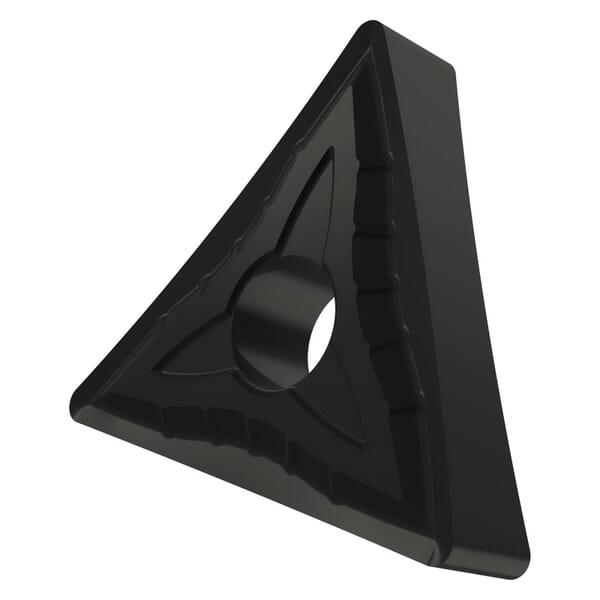

Pramet 6919804 Turning Insert, ANSI Code: TNMG 332-SF T7335, TNMG Insert, Material Grade: M, P, S, 332 Insert, Triangular Shape, 16 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T7335

ManufacturerPramet

Part #816019804

MFG #6919804

UPC #3603603073593

Pramet Turning Insert, TNMG Insert, 332 Insert, Triangular, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3/16 in Thickness, 16.5 mm Length, 16 Seat, Negative Rake, SF Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: T7335, ANSI Code: TNMG 332-SF T7335, ISO Code: TNMG 160408E-SF T7335, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys

$9.13

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: TNMG 332-SF T7335

Chipbreaker: SF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 3.81 mm

Included Angle: 60 deg

Inscribed Circle: 9.525 mm

Insert Size: 332

Insert Style: TNMG

ISO Code: TNMG 160408E-SF T7335

Length: 16.5 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T7335

Material: Carbide

Material Grade: M, P, S

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 16

Shape: Triangular

Thickness: 3/16 in

T7335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
Relatively thin coating applied with the MT-CVD method
Material shows very high strength
Special surface finish for coating
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions
Rounded edge
