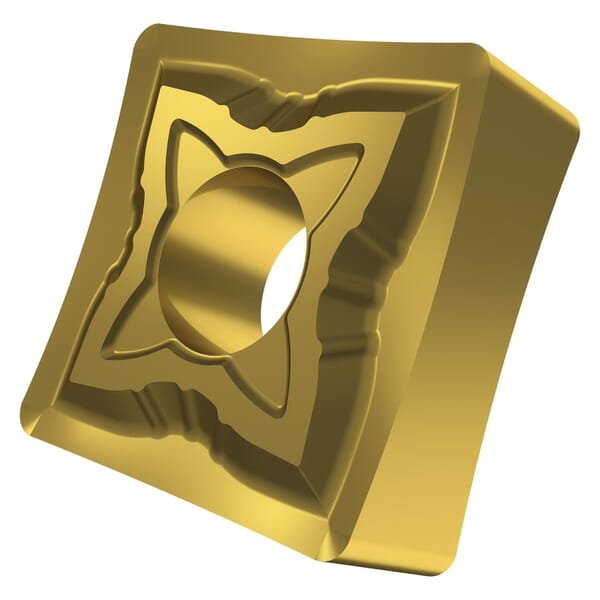

Pramet 6919792 Turning Insert, ANSI Code: SNMG 432-SF:T8315, SNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Carbide, Manufacturers Grade: T8315

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Dormer Pramet

Pramet 6919792 Turning Insert, ANSI Code: SNMG 432-SF:T8315, SNMG Insert, Material Grade: H, K, M, N, P, S, 432 Insert, Squared Shape, 12 Seat, Negative Rake, Carbide, Manufacturers Grade: T8315

ManufacturerPramet

Part #816019792

MFG #6919792

UPC #3603603073470

Pramet Turning Insert, SNMG Insert, 432 Insert, Squared, 3 mm Maximum Depth of Cut, 1/2 in Inscribed Circle, 3/16 in Thickness, 1/2 in Width, 1/2 in Length, 12 Seat, Negative Rake, SF Chipbreaker, 0.8 mm Corner Radius, 0.203 in Hole Dia, Manufacturers Grade: T8315, ANSI Code: SNMG 432-SF:T8315, ISO Code: SNMG 120408E-SF:T8315, 90 deg Included Angle, 0 deg Relief Angle, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Stainless Steel, Steel, Titanium and Super Alloys, Cast Iron, Aluminum and Hardened Steel

$10.65

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: SNMG 432-SF:T8315

Chipbreaker: SF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Stainless Steel, Steel, Titanium and Super Alloys, Cast Iron, Aluminum and Hardened Steel

Hole Diameter: 0.203 in

Included Angle: 90 deg

Inscribed Circle: 1/2 in

Insert Size: 432

Insert Style: SNMG

ISO Code: SNMG 120408E-SF:T8315

Length: 1/2 in

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8315

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 3 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 12

Shape: Squared

Thickness: 3/16 in

Width: 1/2 in

T8315 grade highly abrasion resistant material of the T8300 series with guaranteed strength
Sub-micron substrate with a relatively low cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Higher cutting speeds
Medium chip cross sections
Stable machining conditions
SF chipbreaker - sharp positive geometry with inclination cutting edge
Very low cutting forces
Continuous cut
Suitable for materials with poor machinability, such as stainless steels, mild steels and high temperature alloys

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
