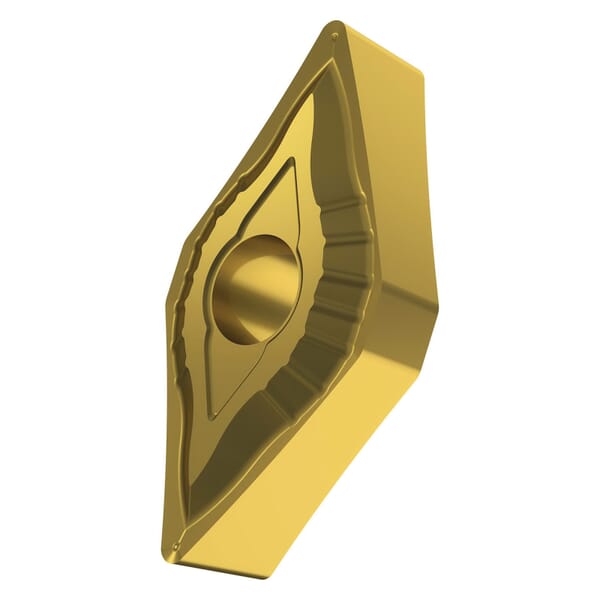

Pramet 6919769 Turning Insert, ANSI Code: DNMG 332-SF T8315, DNMG Insert, Material Grade: H, K, M, N, P, S, 332 Insert, Diamond Shape, 11 Seat, Negative Rake, For Use On Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

ManufacturerPramet

Part #816019769

MFG #6919769

UPC #3603603073241

Pramet Turning Insert, DNMG Insert, 332 Insert, Diamond, 2.5 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 4.76 mm Thickness, 11.6 mm Length, 11 Seat, Negative Rake, SF Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturers Grade: T8315, ANSI Code: DNMG 332-SF T8315, ISO Code: DNMG 110408E-SF T8315, 55 deg Included Angle, 0 deg Relief Angle, Carbide, PVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

$13.58

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: DNMG 332-SF T8315

Chipbreaker: SF

Corner Radius: 0.8 mm

Country of Origin: CZ

Finish: PVD Coated

For Use On: Aluminum, Cast Iron, Hardened Steel, Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 3.81 mm

Included Angle: 55 deg

Inscribed Circle: 9.525 mm

Insert Size: 332

Insert Style: DNMG

ISO Code: DNMG 110408E-SF T8315

Length: 11.6 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T8315

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 2.5 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 11

Shape: Diamond

Thickness: 4.76 mm

T8315 grade highly abrasion resistant material of the T8300 series with guaranteed strength
Sub-micron substrate with a relatively low cobalt content
Nano-layered PVD coating with gradient transitions
Lower internal coating tension with higher hardness
Lower notch wear on the main cutting edge
Higher cutting speeds
Medium chip cross sections
Stable machining conditions
