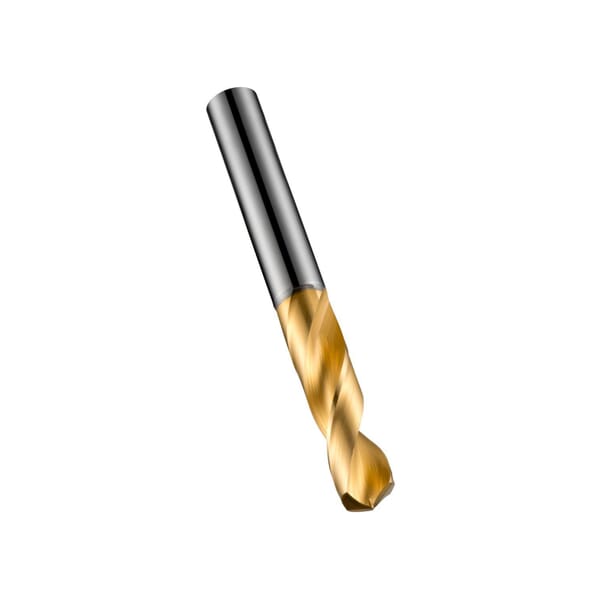

Dormer 5980560 R520 Heavy Duty Multi-Application Screw Machine Drill, 10.3 mm Drill - Metric, 0.4055 in Drill - Decimal Inch, Carbide, TiN Coated

ManufacturerDormer

Part #816016880

MFG #0216880

UPC #7320760216880

Dormer Screw Machine Drill, Heavy Duty Multi-Application, Series: R520, Metric/Imperial, 10.3 mm Drill - Metric, 0.4055 in Drill - Decimal Inch, 89 mm Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 43 mm Flute Length, 10.3 mm Shank, Parallel Shank, 130 deg Point, CDX/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, Carbide, TiN Coated, Gold, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy steel/Hardened and Tempered Steel, Alloy steel Hardened, Free Machining Stainless Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Titanium Alloyed, Nickel Unalloyed, Aluminum Magnesium Unalloyed, Aluminum Alloyed, Thermoplastics and Thermosetting Plastics

$140.83

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Color: Gold

Country of Origin: FR

Cutting Depth: 2.5XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.4055 in

Drill Size - Metric: 10.3 mm

Finish: TiN Coated

Flute Length: 43 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 89 mm

Point Angle: 130 deg

Point Type: CDX/Self-Centering/Split

Series: R520

Shank Size: 10.3 mm

Shank Type: Parallel

Type: Heavy Duty Multi-Application

Micrograin Carbide providing extreme hardness and wear resistance providing increased tool life when machining difficult materials
Conventional flute geometry designed for general drilling applications

For high-speed applications

DIN 6539|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
