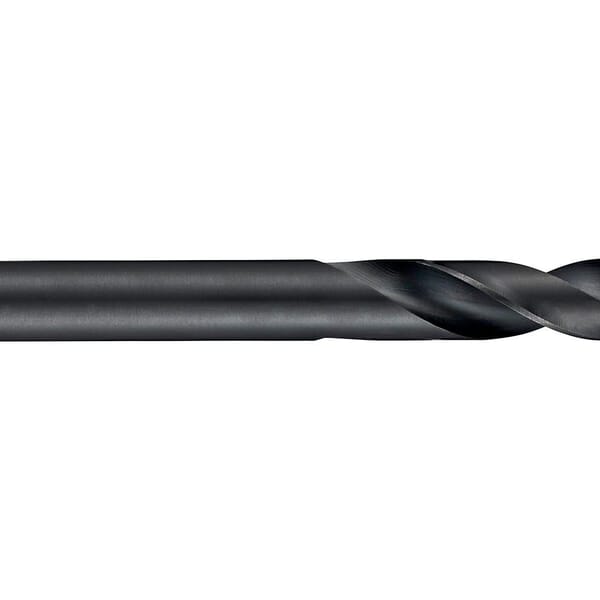

Dormer 5968441 A120 Stub Length Drill, 0.9 mm Drill - Metric, 0.0354 in Drill - Decimal Inch, HSS, Steam Tempered

ManufacturerDormer

Part #816016213

MFG #0016213

UPC #7320760016213

Dormer Stub Length Drill, Series: A120, Metric/Imperial, 0.9 mm Drill - Metric, 0.0354 in Drill - Decimal Inch, 25 mm Overall Length, 2.5XD Cutting Depth, 2 Flutes, Spiral Flute, 5.5 mm Flute Length, 0.9 mm Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steels With Low to High Resistance

$6.15

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Steels With Low to High Resistance

Color: Dark Gray

Country of Origin: FR

Cutting Depth: 2.5XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.0354 in

Drill Size - Metric: 0.9 mm

Finish: Steam Tempered

Flute Length: 5.5 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 25 mm

Point Angle: 135 deg

Point Type: Split

Series: A120

Shank Size: 0.9 mm

Shank Type: Straight

High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
Oxide prevents chip building, galling and welding on the workpiece
It is commonly used on low carbons, stainless steel and iron based ferrous metals
Spiral flutes are constructed of a higher flute angle to remove chips more easily
Regular helix form
Web-thinned
Parallel web configuration
No coolant channe

DIN 1897
