Pramet 6915866 Turning Insert, ANSI Code: TNMG 431-SM T6310, TNMG Insert, Material Grade: H, K, M, N, P, S, 431 Insert, Triangular Shape, 22 Seat, Negative Rake, Carbide, Manufacturers Grade: T6310

ManufacturerPramet

Part #816015866

MFG #6915866

UPC #3603603069763

Pramet Turning Insert, TNMG Insert, 431 Insert, Triangular, 4 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 3/16 in Thickness, 22 mm Length, 22 Seat, Negative Rake, SM Chipbreaker, 0.4 mm Corner Radius, 5.16 mm Hole Dia, Manufacturers Grade: T6310, ANSI Code: TNMG 431-SM T6310, ISO Code: TNMG 220404E-SM T6310, 60 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: H, K, M, N, P, S, For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

$11.32

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

ANSI Code: TNMG 431-SM T6310

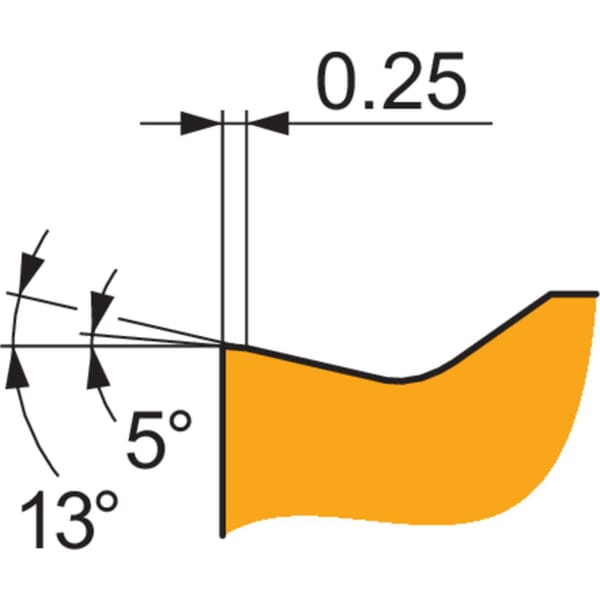

Chipbreaker: SM

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 60 deg

Inscribed Circle: 12.7 mm

Insert Size: 431

Insert Style: TNMG

ISO Code: TNMG 220404E-SM T6310

Length: 22 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T6310

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 22

Shape: Triangular

Thickness: 3/16 in

T6310 grade high reliability due to special new sintering process
High wear resistance (new substrate with high strength and hardness)
PVD coating using triple coating technology, multilayer TiAlN + top layer AlTiSiN with high hardness
High strength and reliability of the insert during continuous cut
Excellent durability of the inserts for higher cutting speeds
Type H ultra submicron substrate
Medium cobalt bonding phase content
Cutting edge is extremely strong and stable
Suitable for applications that require coolant and also for dry machining
Can potentially be used in unstable conditions
Rounded edge

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Medium Machining Applications

Catalog

Specification Sheet

Manufacturer Name: Dormer Pramet

ANSI Code: TNMG 431-SM T6310

Chipbreaker: SM

Corner Radius: 0.4 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloys

Hole Diameter: 5.16 mm

Included Angle: 60 deg

Inscribed Circle: 12.7 mm

Insert Size: 431

Insert Style: TNMG

ISO Code: TNMG 220404E-SM T6310

Length: 22 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T6310

Material: Carbide

Material Grade: H, K, M, N, P, S

Maximum Depth of Cut: 4 mm

Rake: Negative

Relief Angle: 0 deg

Seat Size: 22

Shape: Triangular

Thickness: 3/16 in

T6310 grade high reliability due to special new sintering process
High wear resistance (new substrate with high strength and hardness)
PVD coating using triple coating technology, multilayer TiAlN + top layer AlTiSiN with high hardness
High strength and reliability of the insert during continuous cut
Excellent durability of the inserts for higher cutting speeds
Type H ultra submicron substrate
Medium cobalt bonding phase content
Cutting edge is extremely strong and stable
Suitable for applications that require coolant and also for dry machining
Can potentially be used in unstable conditions
Rounded edge

PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Medium Machining Applications
