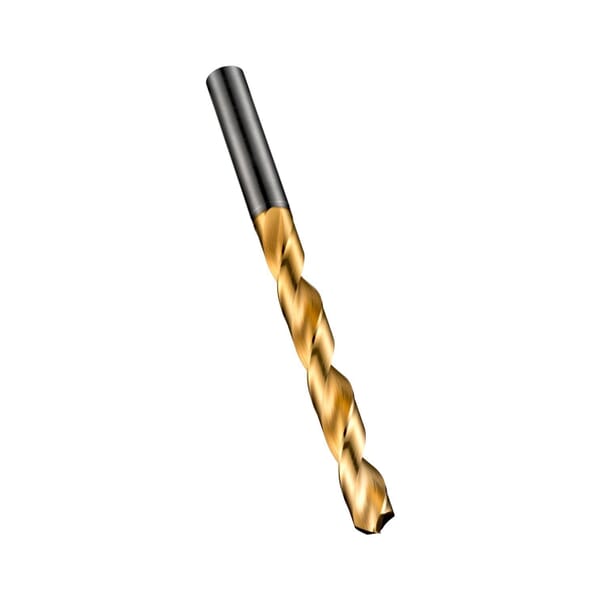

Dormer 5980577 R510 Heavy Duty Multi-Application Jobber Length Drill Bit, 10.4 mm Drill - Metric, 0.4094 in Drill - Decimal Inch, 130 deg Point, Carbide, TiN Coated

ManufacturerDormer

Part #816015572

MFG #0115572

UPC #7320760115572

Dormer Jobber Length Drill Bit, Heavy Duty Multi-Application, Series: R510, Metric/Imperial, 10.4 mm Drill - Metric, 0.4094 in Drill - Decimal Inch, 133 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 87 mm Flute Length, 10.4 mm Shank, Parallel/Straight Shank, 130 deg Point, CDX/Self-Centering/Split Point, Right Hand Cutting Direction, Carbide Cutting Edge, No Through Coolant, Carbide, TiN Coated, Gold, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel, Alloy Steel/Hardened and Tempered Steel, Alloy Steel Hardened, Free Machining Stainless Steel, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed, Nickel Unalloyed, Aluminum Magnesium Unalloyed, Aluminum Alloyed, Thermoplastics and Thermosetting Plastics

$191.75

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Color: Gold

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.4094 in

Drill Size - Metric: 10.4 mm

Finish: TiN Coated

Flute Length: 87 mm

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 133 mm

Point Angle: 130 deg

Point Type: CDX/Self-Centering/Split

Series: R510

Shank Size: 10.4 mm

Shank Type: Parallel/Straight

Through Coolant (Yes/No): No

Type: Heavy Duty Multi-Application

Self-centering split point for easier penetration
TiN coating increases wear resistance and improves tool life

For general drilling applications

DIN 338|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
