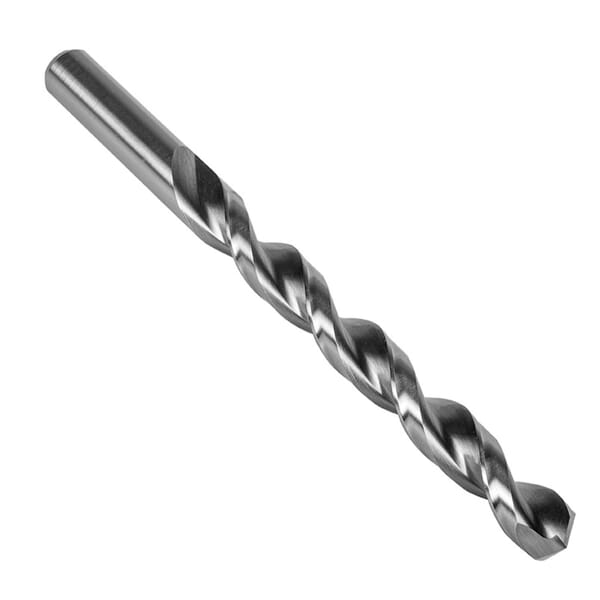

Precision Twist Drill 5996591 QC21PM General Purpose Heavy Duty Jobber Length Drill Bit, 12 mm Drill - Metric, 0.4724 in Drill - Decimal Inch, 135 deg Point, HSS, Bright

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Precision Twist Drill 5996591 QC21PM General Purpose Heavy Duty Jobber Length Drill Bit, 12 mm Drill - Metric, 0.4724 in Drill - Decimal Inch, 135 deg Point, HSS, Bright

ManufacturerPrecision Twist Drill

Part #816014920

MFG #5996591

UPC #086071149206

Precision Twist Drill Jobber Length Drill Bit, General Purpose Heavy Duty, Series: QC21PM, Metric/Imperial, 12 mm Drill - Metric, 0.4724 in Drill - Decimal Inch, 151 mm Overall Length, 4XD Cutting Depth, 2 Flutes, Wide Land Parabolic Flute, 101 mm Flute Length, 12 mm Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Bright, Applicable Materials: Alloy Steel, Ferritic+Austenitic, Free Machining Stainless Steel, Hardened/Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Graphite/Malleable Cast Iron, Plain Carbon Steel and Structural Steel/Case Carburizing Steel

$28.22

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Alloy Steel, Ferritic+Austenitic, Free Machining Stainless Steel, Hardened/Tempered Steel, Lamellar Graphite, Magnetic Soft Steel, Martensitic, Graphite/Malleable Cast Iron, Plain Carbon Steel and Structural Steel/Case Carburizing Steel

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.4724 in

Drill Size - Metric: 12 mm

Finish: Bright

Flute Length: 101 mm

Flute Type: Wide Land Parabolic

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 151 mm

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: QC21PM

Shank Size: 12 mm

Shank Type: Straight

Through Coolant (Yes/No): No

Type: General Purpose Heavy Duty

Parabolic flute design for efficient chip removal
Allows greater drilling depths in one pass
Low thrust design self-centering split point for easier penetration
Bright finish improves chip flow in soft or non-ferrous materials

ANSI Specified|DIN 338|CSA Approved

Catalog

Specification Sheet

Manufacturer Name: Dormer Pramet

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Metric/Imperial

Drill Size - Decimal Inch: 0.4724 in

Drill Size - Metric: 12 mm

Finish: Bright

Flute Length: 101 mm

Flute Type: Wide Land Parabolic

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 151 mm

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: QC21PM

Shank Size: 12 mm

Shank Type: Straight

Through Coolant (Yes/No): No

Type: General Purpose Heavy Duty

Parabolic flute design for efficient chip removal
Allows greater drilling depths in one pass
Low thrust design self-centering split point for easier penetration
Bright finish improves chip flow in soft or non-ferrous materials

ANSI Specified|DIN 338|CSA Approved

Catalog

Specification Sheet
