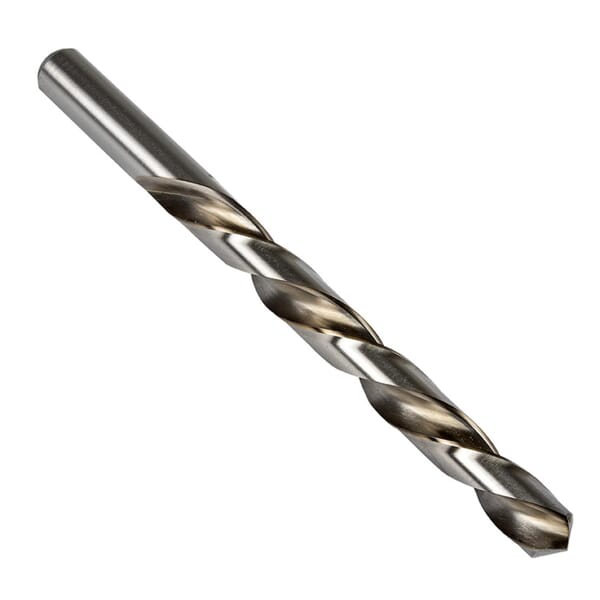

Precision Twist Drill 5995472 L10 General Purpose Jobber Length Drill Bit, 19/64 in Drill - Fraction, 0.2969 in Drill - Decimal Inch, 118 deg Point, HSS, Bright

ManufacturerPrecision Twist Drill

Part #816010919

MFG #5995472

UPC #086071109194

Precision Twist Drill Jobber Length Drill Bit, General Purpose, Series: L10, Imperial, 19/64 in Drill - Fraction, 0.2969 in Drill - Decimal Inch, 4-3/8 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 3-1/16 in Flute Length, 19/64 in Shank, Straight Shank, 118 deg Point, Conventional/Standard Point, Left Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Bright, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Titanium Unalloyed/Alloyed ,Nickel Unalloyed/Alloyed, Brass, Bronze, High Strength Bronze, Thermoplastics, Thermosetting Plastics, Reinforced Plastic Materials and Cermets

$15.04

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Left Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.2969 in

Drill Size - Fraction: 19/64 in

Finish: Bright

Flute Length: 3-1/16 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 4-3/8 in

Point Angle: 118 deg

Point Type: Conventional/Standard

Series: L10

Shank Size: 19/64 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: General Purpose

Left hand helix for use in machines where spindle is counter-clockwise and can be used to remove broken parts without damaging threaded holes
Bright finish improves chip flow in soft or non-ferrous materials

ANSI Specified|CSA Approved

Catalog

Specification Sheet

Manufacturer Name: Dormer Pramet

Country of Origin: FR

Cutting Depth: 4XD

Cutting Direction: Left Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.2969 in

Drill Size - Fraction: 19/64 in

Finish: Bright

Flute Length: 3-1/16 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 4-3/8 in

Point Angle: 118 deg

Point Type: Conventional/Standard

Series: L10

Shank Size: 19/64 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: General Purpose

Left hand helix for use in machines where spindle is counter-clockwise and can be used to remove broken parts without damaging threaded holes
Bright finish improves chip flow in soft or non-ferrous materials

ANSI Specified|CSA Approved
