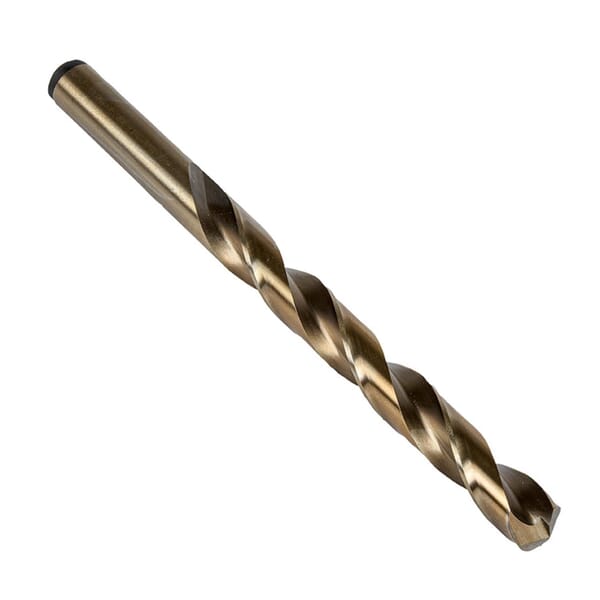

Precision Twist Drill 5998143 R10CO Heavy Duty Jobber Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 135 deg Point, HSS-E, Bronze Oxide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Precision Twist Drill 5998143 R10CO Heavy Duty Jobber Length Drill Bit, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 135 deg Point, HSS-E, Bronze Oxide

ManufacturerPrecision Twist Drill

Part #816010316

MFG #5998143

UPC #086071103161

Precision Twist Drill Jobber Length Drill Bit, Heavy Duty, Series: R10CO, Imperial, 1/4 in Drill - Fraction, 0.25 in Drill - Decimal Inch, 4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-3/4 in Flute Length, 1/4 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS-E Cutting Edge, No Through Coolant, HSS-E, Bronze Oxide, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze

$7.67

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Ferritic + Austenitic, Graphite/Malleable Cast Iron, Titanium, Nickel, Copper, Brass and Bronze

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.25 in

Drill Size - Fraction: 1/4 in

Finish: Bronze Oxide

Flute Length: 2-3/4 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 4 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: R10CO

Shank Size: 1/4 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: Heavy Duty

Low thrust design self-centering split point for easier penetration
Cobalt base material with bronze oxide for wear resistance and lubricity
For enhanced tool life in ferrous materials

For used with hand held manual drills and either portable or stationary machines

ANSI Specified|NAS 907 Type J|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Catalog

Manufacturer Name: Dormer Pramet

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS-E

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.25 in

Drill Size - Fraction: 1/4 in

Finish: Bronze Oxide

Flute Length: 2-3/4 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS-E

Number of Flutes: 2

Overall Length: 4 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: R10CO

Shank Size: 1/4 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: Heavy Duty

Low thrust design self-centering split point for easier penetration
Cobalt base material with bronze oxide for wear resistance and lubricity
For enhanced tool life in ferrous materials

For used with hand held manual drills and either portable or stationary machines

ANSI Specified|NAS 907 Type J|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Catalog
