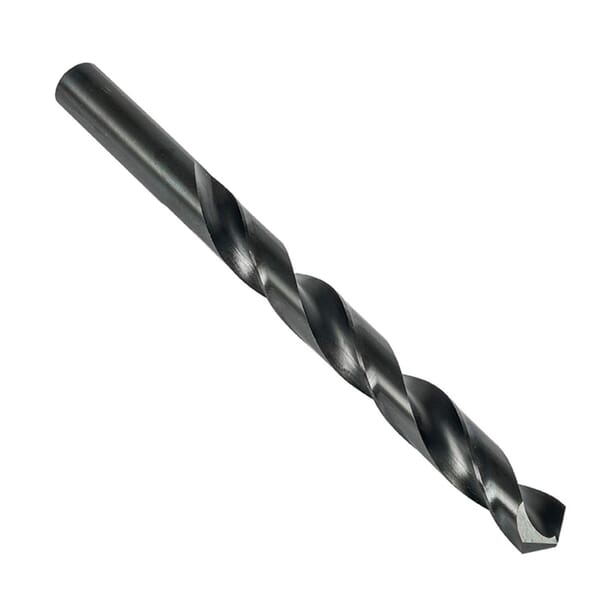

Precision Twist Drill 5997620 R10B General Purpose Heavy Duty Jobber Length Drill Bit, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 135 deg Point, HSS, Steam Tempered

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Precision Twist Drill 5997620 R10B General Purpose Heavy Duty Jobber Length Drill Bit, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 135 deg Point, HSS, Steam Tempered

ManufacturerPrecision Twist Drill

Part #816010211

MFG #5997620

UPC #086071102119

Precision Twist Drill Jobber Length Drill Bit, General Purpose Heavy Duty, Series: R10B, Imperial, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 3-1/4 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-1/8 in Flute Length, 11/64 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, No Through Coolant, HSS, Steam Tempered, Dark Gray, Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic and Graphite/Malleable Cast Iron

$2.51

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Magnetic Soft Steel, Structural Steel/Case Carburizing Steel, Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic and Graphite/Malleable Cast Iron

Color: Dark Gray

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.1719 in

Drill Size - Fraction: 11/64 in

Finish: Steam Tempered

Flute Length: 2-1/8 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 3-1/4 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: R10B

Shank Size: 11/64 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: General Purpose Heavy Duty

Low thrust design self-centering split point for easier penetration
Steam oxide surface treatment for increased wear resistance and lubricity
Recommended for tougher ferrous materials

Aerospace Industry, General Drilling and Hole Making Applications

ANSI Specified|NAS 907 Type B|CSA Approved

Catalog

Manufacturer Name: Dormer Pramet

Color: Dark Gray

Country of Origin: BR

Cutting Depth: 4XD

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Diameter Measurement System: Imperial

Drill Size - Decimal Inch: 0.1719 in

Drill Size - Fraction: 11/64 in

Finish: Steam Tempered

Flute Length: 2-1/8 in

Flute Type: Spiral

Manufacturer Name: Dormer Pramet

Material: HSS

Number of Flutes: 2

Overall Length: 3-1/4 in

Point Angle: 135 deg

Point Type: Split/Self-Centering

Series: R10B

Shank Size: 11/64 in

Shank Type: Straight

Through Coolant (Yes/No): No

Type: General Purpose Heavy Duty

Low thrust design self-centering split point for easier penetration
Steam oxide surface treatment for increased wear resistance and lubricity
Recommended for tougher ferrous materials

Aerospace Industry, General Drilling and Hole Making Applications

ANSI Specified|NAS 907 Type B|CSA Approved

Catalog
