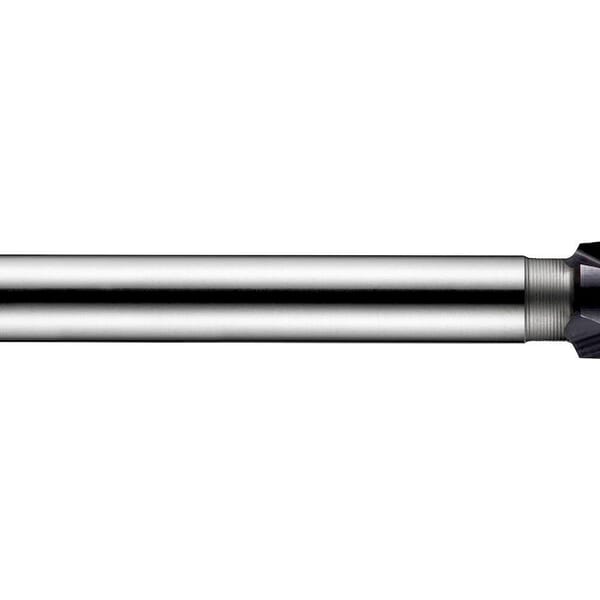

Dormer 5973341 G560 Single End Countersink, 16.5 mm Dia Body, 10 mm Dia Shank, 3 Flutes, 90 deg Included, 3.2 mm Dia Min Cutting, HSS

ManufacturerDormer

Part #816009663

MFG #0109663

UPC #7320760109663

Dormer Countersink, Single End, Series: G560, 16.5 mm Diameter Body, 60 mm Overall Length, 10.5 mm Length of Cut, Straight Shank, 10 mm Shank Diameter, 3.2 mm Diameter Nose, 3 Flutes, Right Hand Cutting Direction, 90 deg Included Angle, 3.2 mm Diameter Minimum Cutting, HSS, TiAlN Coated

$76.20

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Body Diameter: 16.5 mm

Country of Origin: FR

Cutting Direction: Right Hand

Finish: TiAlN Coated

Included Angle: 90 deg

Length of Cut: 10.5 mm

Manufacturer Name: Dormer Pramet

Material: HSS

Minimum Cutting Diameter: 3.2 mm

Nose Diameter: 3.2 mm

Number of Flutes: 3

Overall Length: 60 mm

Series: G560

Shank Diameter: 10 mm

Shank Type: Straight

Type: Single End

TiAlN coating increases surface hardness, improves chip flow and increases tool life

DIN 335C

Catalog

Manufacturer Name: Dormer Pramet

Body Diameter: 16.5 mm

Country of Origin: FR

Cutting Direction: Right Hand

Finish: TiAlN Coated

Included Angle: 90 deg

Length of Cut: 10.5 mm

Manufacturer Name: Dormer Pramet

Material: HSS

Minimum Cutting Diameter: 3.2 mm

Nose Diameter: 3.2 mm

Number of Flutes: 3

Overall Length: 60 mm

Series: G560

Shank Diameter: 10 mm

Shank Type: Straight

Type: Single End

TiAlN coating increases surface hardness, improves chip flow and increases tool life

DIN 335C

Catalog
