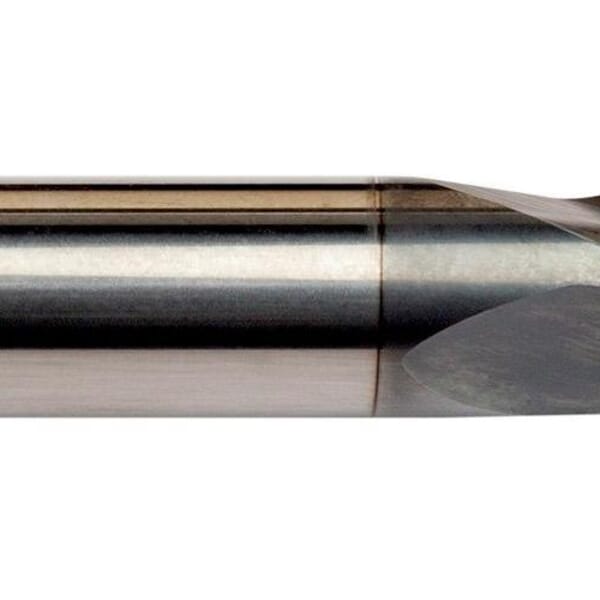

Dormer 7106974 S823 Metric Medium Cut Standard Slot Drill Cutter, 6 mm Dia Cutter, 19 mm Length of Cut, 3 Flutes, 6 mm Dia Shank, 57 mm OAL, AlCrN Coated

ManufacturerDormer

Part #816006974

MFG #47106974

UPC #7320760698631

Dormer Slot Drill Cutter, Metric Medium Cut Standard, Series: S823, 6 mm Cutter Dia, 57 mm Overall Length, 19 mm Length of Cut, 3 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 28 deg Helix Angle, Straight Shank, Carbide, AlCrN Coated

$46.98

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Country of Origin: IT

Cutter Diameter: 6 mm

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Helix Angle: 28 deg

Length of Cut: 19 mm

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 3

Overall Length: 57 mm

Series: S823

Shank Diameter: 6 mm

Shank Type: Straight

Type: Metric Medium Cut Standard

Multi-application high performance milling across a wide range of materials, including steel, stainless steel, aluminum and cast iron
Reduced tooling costs - one cutter machines many materials and performs multiple operations
AlCrN coating improves workpiece surface finish and increases tool life
Versatility - all milling operations are supported
Machine tool flexibility - same tool for many materials and operations leads to reduced set-up time and therefore shorter production time
Design of cutting edge and web promotes fast and efficient chip evacuation

Slotting, Ramping, Profiling, Roughing, Semi-Finishing, Finishing and Plunging Applications

DIN 6535 HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
