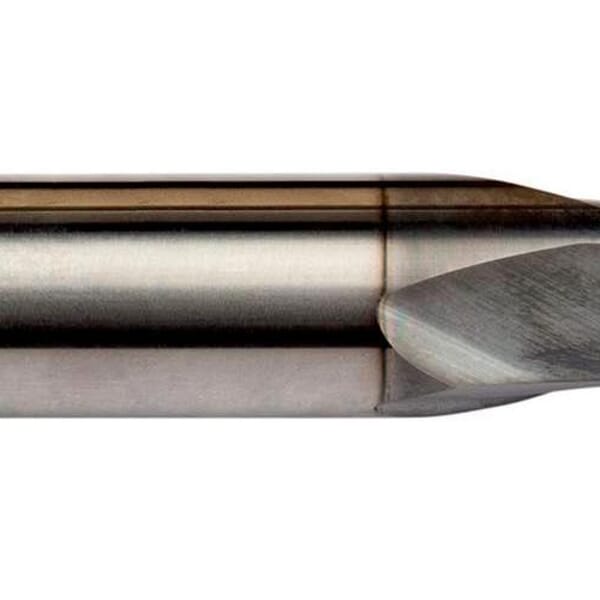

Dormer 7106956 S822 Metric Medium Cut Standard Slot Drill Cutter, 3 mm Dia Cutter, 12 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 57 mm OAL, AlCrN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 7106956 S822 Metric Medium Cut Standard Slot Drill Cutter, 3 mm Dia Cutter, 12 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 57 mm OAL, AlCrN Coated

ManufacturerDormer

Part #816006956

MFG #47106956

UPC #7320760698457

Dormer Slot Drill Cutter Dormer, Metric Medium Cut Standard, Series: S822, 3 mm Diameter Cutter, 57 mm Overall Length, 12 mm Length of Cut, 2 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 28 deg Helix Angle, Straight Shank, Carbide, AlCrN Coated

$41.40

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Country of Origin: IT

Cutter Diameter: 3 mm

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Helix Angle: 28 deg

Length of Cut: 12 mm

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 57 mm

Series: S822

Shank Diameter: 6 mm

Shank Type: Straight

Type: Metric Medium Cut Standard

Multi-application high performance milling across a wide range of materials, including steel, stainless steel, aluminum and cast iron
Reduced tooling costs - one cutter machines many materials and performs multiple operations
AlCrN coating improves workpiece surface finish and increases tool life
Versatility - all milling operations are supported
Machine tool flexibility - same tool for many materials and operations leads to reduced set-up time and therefore shorter production time
Design of cutting edge and web promotes fast and efficient chip evacuation

Slotting, Ramping, Profiling, Roughing, Semi-Finishing, Finishing and Plunging Applications

DIN 6535 HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog

Manufacturer Name: Dormer Pramet

Country of Origin: IT

Cutter Diameter: 3 mm

Cutting Direction: Right Hand

Finish: AlCrN Coated

Flute Type: Spiral

Helix Angle: 28 deg

Length of Cut: 12 mm

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 2

Overall Length: 57 mm

Series: S822

Shank Diameter: 6 mm

Shank Type: Straight

Type: Metric Medium Cut Standard

Multi-application high performance milling across a wide range of materials, including steel, stainless steel, aluminum and cast iron
Reduced tooling costs - one cutter machines many materials and performs multiple operations
AlCrN coating improves workpiece surface finish and increases tool life
Versatility - all milling operations are supported
Machine tool flexibility - same tool for many materials and operations leads to reduced set-up time and therefore shorter production time
Design of cutting edge and web promotes fast and efficient chip evacuation

Slotting, Ramping, Profiling, Roughing, Semi-Finishing, Finishing and Plunging Applications

DIN 6535 HA|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov

Catalog
