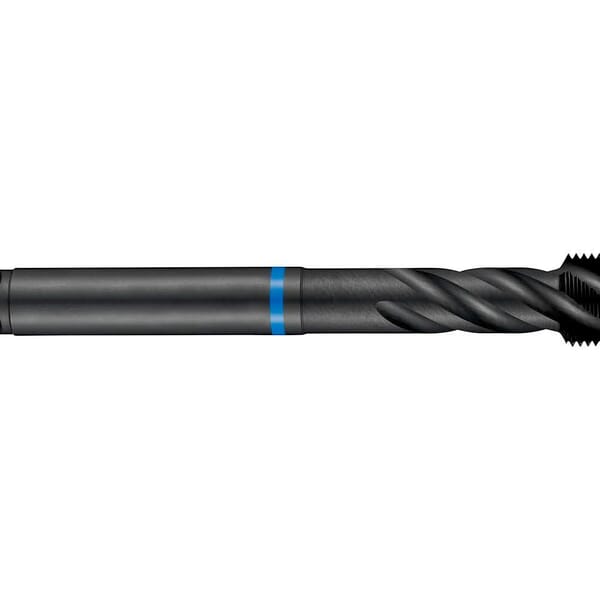

Dormer 6305857 E383 Spiral Flute Machine Tap, Right Hand Cutting, M12x1.25 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, Steam Tempered, HSS-E

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Dormer 6305857 E383 Spiral Flute Machine Tap, Right Hand Cutting, M12x1.25 Thread, Semi-Bottoming Chamfer, Right Hand Flute Direction, 4 Flutes, Steam Tempered, HSS-E

ManufacturerDormer

Part #816005857

MFG #46305857

UPC #7320760664629

Dormer Spiral Flute Machine Tap, Series: E383, Measurement System: Metric, Fine, M12x1.25, Semi-Bottoming Chamfer, 4 Flutes, HSS-E, Steam Tempered, Class of Fit: 6H, Right Hand Cutting, 13 mm Thread Length, 100 mm Overall Length, 9 mm Shank Dia, Right Hand Flute Direction, Stainless Steel Material Application

$72.50

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Chamfer Type: Semi-Bottoming

Class of Fit: 6H

Country of Origin: IN

Cutting Direction: Right Hand

Finish/Coating: Steam Tempered

Flute Direction: Right Hand

Manufacturer Name: Dormer Pramet

Material: HSS-E

Material Application: Stainless Steel

Measurement System: Metric

Number of Flutes: 4

Overall Length: 100 mm

Series: E383

Shank Diameter: 9 mm

Thread Length: 13 mm

Thread Size: M12x1.25

Thread Standard: Fine

Optimum combination of material and geometry ensures low material adhesion, resulting in increased performance and tool life
Tap geometry allows adequate flute space for rapid and smooth chip evacuation, meaning negligible chip congestion and therefore, a continuous production process
Surface treatments provide great protection against wear and material adhesion
High performance production in a wide range of stainless steels

For blind hole applications

DIN 374|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov
