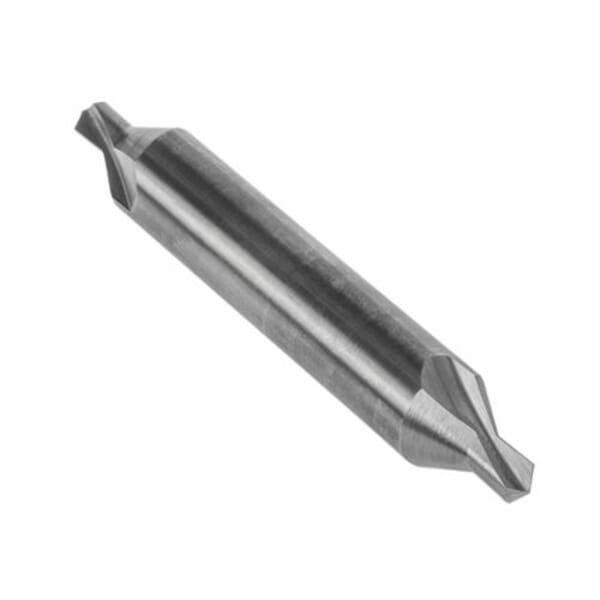

Precision Twist Drill 6002380 DC Series Center Drill Combined Drill and Countersink, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 60 deg Included Angle, 118 deg Point Angle, Carbide, Bright

ManufacturerPrecision Twist Drill

Part #816003256

MFG #6002380

UPC #086071032560

Precision Twist Drill Combined Drill and Countersink, Center Drill, Series: DC Series, 3/16 in Drill Size - Fraction, 0.1875 in Drill Size - Decimal Inch, #5 Point Dia, 7/16 in Body Dia, 2-3/4 in Overall Length, 1 Flutes, 3/16 in Flute Length, 7/16 in Shank, Straight Shank, 118 deg Point, Conventional Point, 60 deg Included Angle, Right Hand Cutting, Carbide Cutting Edge, Carbide, Bright, Applicable Materials: Brass, Bronze, Thermoplastic and Thermosetting Plastic

$100.92

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Applicable Materials: Brass, Bronze, Thermoplastic and Thermosetting Plastic

Body Diameter: 7/16 in

Country of Origin: US

Cutting Direction: Right Hand

Cutting Edge Material: Carbide

Drill Size - Decimal Inch: 0.1875 in

Drill Size - Fraction: 3/16 in

Finish: Bright

Flute Length: 3/16 in

Included Angle: 60 deg

Manufacturer Name: Dormer Pramet

Material: Carbide

Number of Flutes: 1

Overall Length: 2-3/4 in

Point Angle: 118 deg

Point Diameter: #5

Point Type: Conventional

Series: DC Series

Shank Size: 7/16 in

Shank Type: Straight

Type: Center Drill

Better abrasion resistance / longer tool life
Bright finish improves chip flow in soft or non-ferrous materials

General Purpose Drilling Applications
