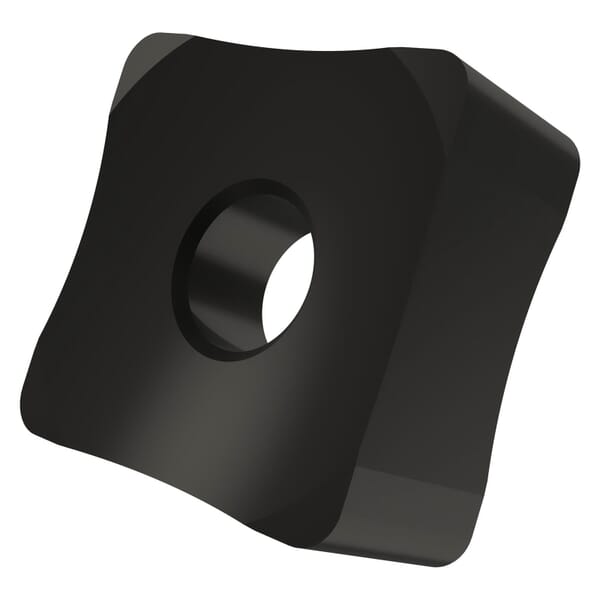

Pramet 6801247 Turning Insert, SNMX Insert, Material Grade: M, P, S, 251224 Insert, Squared Shape, 25 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T9335

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Pramet 6801247 Turning Insert, SNMX Insert, Material Grade: M, P, S, 251224 Insert, Squared Shape, 25 Seat, Negative Rake, For Use On Stainless Steel, Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: T9335

ManufacturerPramet

Part #816001247

MFG #6801247

UPC #3603602996558

Pramet Turning Insert, SNMX Insert, 251224 Insert, Squared Shape, 25.4 mm Inscribed Circle, 12.2 mm Thickness, 25.4 mm Width, 25.4 mm Length, 25 Seat, Negative Rake, R100 Chipbreaker, 2.4 mm Corner Radius, 9.12 mm Diameter Hole, Manufacturers Grade: T9335, ISO Code: SNMX 251224-R100:T9335, 90 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: M, P, S, For Use On: Stainless Steel, Steel and Titanium/Super Alloys

$69.43

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Chipbreaker: R100

Corner Radius: 2.4 mm

Country of Origin: CZ

Finish: CVD Coated

For Use On: Stainless Steel, Steel and Titanium/Super Alloys

Hole Diameter: 9.12 mm

Included Angle: 90 deg

Inscribed Circle: 25.4 mm

Insert Size: 251224

Insert Style: SNMX

ISO Code: SNMX 251224-R100:T9335

Length: 25.4 mm

Manufacturer Name: Dormer Pramet

Manufacturers Grade: T9335

Material: Carbide

Material Grade: M, P, S

Rake: Negative

Relief Angle: 0 deg

Seat Size: 25

Shape: Squared

Thickness: 12.2 mm

Width: 25.4 mm

T9335 grade functionally gradient substrate with medium grain size
Relatively high cobalt content
MT-CVD coating of medium thickness
Material shows very high strength
Special surface finish for coating
Designed for machining material groups P, M and S
Medium cutting speeds
Continuous and heavily interrupted cut
Also withstands very unfavorable machining conditions
