Seco Niagara Cutter 17005787 C330 Center Cutting Long Length Single End Square End End Mill, 1/8 in Dia Cutter, 1/2 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiAlN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

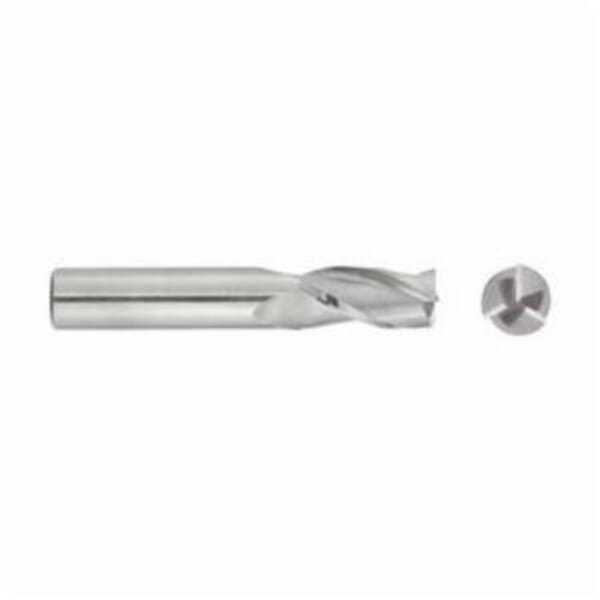

Seco Niagara Cutter 17005787 C330 Center Cutting Long Length Single End Square End End Mill, 1/8 in Dia Cutter, 1/2 in Length of Cut, 3 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiAlN Coated

ManufacturerSeco

Part #803686002

MFG #N86002

Seco Niagara Cutter End Mill, Center Cutting Long Length Single End Square End, Series: C330, 1/8 in Diameter Cutter, 1-1/2 in Overall Length, 1/2 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C330-0.125-D4-S.0-Z3, ISO Code: C330.125D4S.0Z3, Solid Carbide, TiAlN Coated

$10.33

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: C330-0.125-D4-S.0-Z3

Country of Origin: US

Cutter Diameter: 1/8 in

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: C330.125D4S.0Z3

Length of Cut: 1/2 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 1-1/2 in

Series: C330

Shank Diameter: 1/8 in

Shank Type: Cylindrical

Type: Center Cutting Long Length Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
90 deg cutting edge
30 deg axial rake
10 deg radial rake
D - Cylindrical tool shape

Seco Niagara Cutter End Mill, Center Cutting Long Length Single End Square End, Series: C330, 1/8 in Diameter Cutter, 1-1/2 in Overall Length, 1/2 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C330-0.125-D4-S.0-Z3, ISO Code: C330.125D4S.0Z3, Solid Carbide, TiAlN Coated

Catalog

Manufacturer Name: Seco Tools

ANSI Code: C330-0.125-D4-S.0-Z3

Country of Origin: US

Cutter Diameter: 1/8 in

Cutting Direction: Right Hand

Finish: TiAlN Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: C330.125D4S.0Z3

Length of Cut: 1/2 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 1-1/2 in

Series: C330

Shank Diameter: 1/8 in

Shank Type: Cylindrical

Type: Center Cutting Long Length Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Titanium aluminum nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN, as a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications
90 deg cutting edge
30 deg axial rake
10 deg radial rake
D - Cylindrical tool shape

Seco Niagara Cutter End Mill, Center Cutting Long Length Single End Square End, Series: C330, 1/8 in Diameter Cutter, 1-1/2 in Overall Length, 1/2 in Length of Cut, 3 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C330-0.125-D4-S.0-Z3, ISO Code: C330.125D4S.0Z3, Solid Carbide, TiAlN Coated
