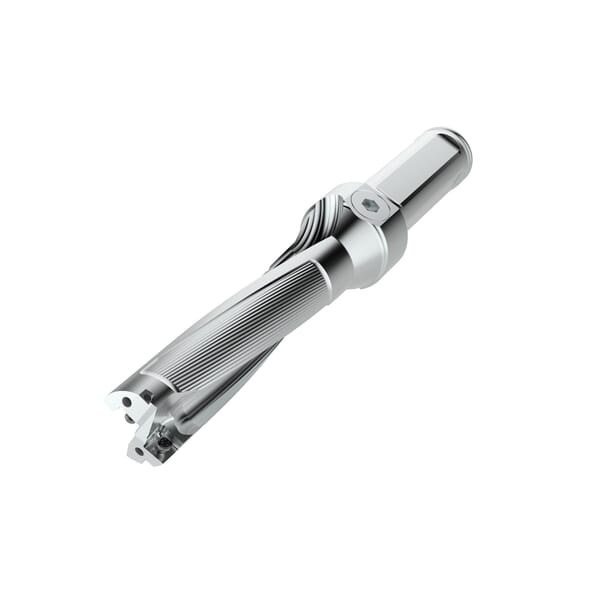

Seco 03080282 Perfomax SD524 Indexable Insert Drill, 5/8 in Drill, 1.378 in Modular Connection, 1 in Dia Shank, 4XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 6.628 in OAL, 2-1/2 in D Max Drill

ManufacturerSeco

Part #803680282

MFG #03080282

Seco Indexable Insert Drill, Series: Perfomax SD524, 5/8 in Drill, 1 in Shank Dia, 2-3/4 in Shank Length, ISO 9766 Shank, 1.378 in Modular Connection Size, SPGX/SCGX Insert, 2-1/2 in Maximum Drill Depth, 6.628 in Overall Length, 5/8 in Dia, 4XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: SPGX0502 Center, SCGX050204 Peripheral, 2.697 in Flute Length, Yes Through Coolant (Yes/No)

$936.01

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 5/8 in

Drill Depth by Diameter Ratio: 4XD

Drill Size: 5/8 in

Flute Length: 2.697 in

Insert Compatibility: SPGX0502 Center, SCGX050204 Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 2-1/2 in

Modular Connection Size: 1.378 in

Number of Drill Inserts: 2

Overall Length: 6.628 in

Series: Perfomax SD524

Shank Diameter: 1 in

Shank Length: 2-3/4 in

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Catalog

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 5/8 in

Drill Depth by Diameter Ratio: 4XD

Drill Size: 5/8 in

Flute Length: 2.697 in

Insert Compatibility: SPGX0502 Center, SCGX050204 Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 2-1/2 in

Modular Connection Size: 1.378 in

Number of Drill Inserts: 2

Overall Length: 6.628 in

Series: Perfomax SD524

Shank Diameter: 1 in

Shank Length: 2-3/4 in

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
