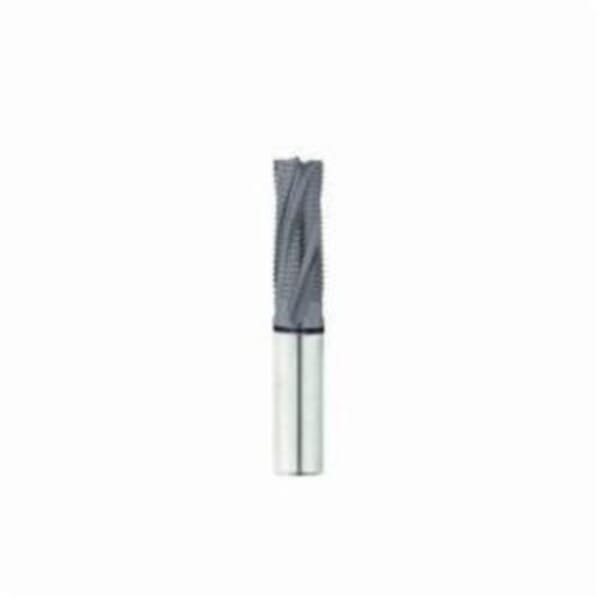

Seco Niagara Cutter 17004627 Elite SR420 Center Cutting Corner Chamfer High Performance Short Length Single End Roughing End Mill, 3/4 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 4 in OAL, Uncoated

ManufacturerSeco

Part #803676143

MFG #N76143

Seco Niagara Cutter Roughing End Mill, Center Cutting Corner Chamfer High Performance Short Length Single End, Series: Elite SR420, 3/4 in Diameter Cutter, 4 in Overall Length, 1-5/8 in Length of Cut, 4 Flutes, Fine Pitch/Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Weldon Flat Shank, ANSI Code: SR420-0.750-D2-C025.3-Z4, ISO Code: SR420.750D2C025.3Z4, Solid Carbide, Uncoated

$260.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: SR420-0.750-D2-C025.3-Z4

Country of Origin: US

Cutter Diameter: 3/4 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Fine Pitch/Spiral

Helix Angle: 20 deg

ISO Code: SR420.750D2C025.3Z4

Length of Cut: 1-5/8 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 4 in

Series: Elite SR420

Shank Diameter: 3/4 in

Shank Type: Weldon Flat

Type: Center Cutting Corner Chamfer High Performance Short Length Single End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
0.025 in W corner chamfer
2.031 in L minimum clamping
20 deg axial rake
10 deg side rake
45 deg chamfer
Weldon flat standard on shank sizes 3/8 in and larger
D - Cylindrical tool shape
Fine pitch knuckle profile
Designed for steel and stainless stee

Seco Niagara Cutter Roughing End Mill, Center Cutting Corner Chamfer High Performance Short Length Single End, Series: Elite SR420, 3/4 in Diameter Cutter, 4 in Overall Length, 1-5/8 in Length of Cut, 4 Flutes, Fine Pitch/Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Weldon Flat Shank, ANSI Code: SR420-0.750-D2-C025.3-Z4, ISO Code: SR420.750D2C025.3Z4, Solid Carbide, Uncoated

Catalog

Manufacturer Name: Seco Tools

ANSI Code: SR420-0.750-D2-C025.3-Z4

Country of Origin: US

Cutter Diameter: 3/4 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Fine Pitch/Spiral

Helix Angle: 20 deg

ISO Code: SR420.750D2C025.3Z4

Length of Cut: 1-5/8 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 4 in

Series: Elite SR420

Shank Diameter: 3/4 in

Shank Type: Weldon Flat

Type: Center Cutting Corner Chamfer High Performance Short Length Single End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
0.025 in W corner chamfer
2.031 in L minimum clamping
20 deg axial rake
10 deg side rake
45 deg chamfer
Weldon flat standard on shank sizes 3/8 in and larger
D - Cylindrical tool shape
Fine pitch knuckle profile
Designed for steel and stainless stee
