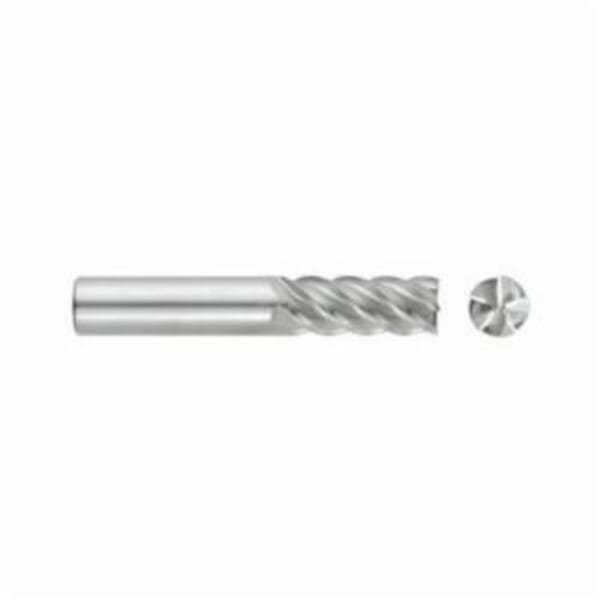

Seco Niagara Cutter 17003587 Elite S545 Center Cutting High Performance Short Length Single End Square End End Mill, 7/32 in Dia Cutter, 3/8 in Length of Cut, 5 Flutes, 1/4 in Dia Shank, 2 in OAL, AlTiN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco Niagara Cutter 17003587 Elite S545 Center Cutting High Performance Short Length Single End Square End End Mill, 7/32 in Dia Cutter, 3/8 in Length of Cut, 5 Flutes, 1/4 in Dia Shank, 2 in OAL, AlTiN Coated

ManufacturerSeco

Part #803661989

MFG #N61989

Seco Niagara Cutter End Mill, Center Cutting High Performance Short Length Single End Square End, Series: Elite S545, 7/32 in Diameter Cutter, 2 in Overall Length, 3/8 in Length of Cut, 5 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: S545-0.219-F2-S.0-Z5, ISO Code: S545.219F2S.0Z5, Solid Carbide, AlTiN Coated

$36.83

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: S545-0.219-F2-S.0-Z5

Country of Origin: US

Cutter Diameter: 7/32 in

Cutting Direction: Right Hand

Finish: AlTiN Coated

Flute Type: Spiral

Helix Angle: 45 deg

ISO Code: S545.219F2S.0Z5

Length of Cut: 3/8 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 5

Overall Length: 2 in

Series: Elite S545

Shank Diameter: 1/4 in

Shank Type: Cylindrical

Type: Center Cutting High Performance Short Length Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
90 deg cutting edge
1.417 in L minimum clamping
45 deg axial rake
10 deg radial rake
10 deg neck
Ideal for peripheral finish milling in steel, stainless steel, titanium and high temperature alloys
F - Step tool shape
Square nose end mills (also called square end) create sharp, unrounded cuts

Seco Niagara Cutter End Mill, Center Cutting High Performance Short Length Single End Square End, Series: Elite S545, 7/32 in Diameter Cutter, 2 in Overall Length, 3/8 in Length of Cut, 5 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: S545-0.219-F2-S.0-Z5, ISO Code: S545.219F2S.0Z5, Solid Carbide, AlTiN Coated

Catalog

Manufacturer Name: Seco Tools

ANSI Code: S545-0.219-F2-S.0-Z5

Country of Origin: US

Cutter Diameter: 7/32 in

Cutting Direction: Right Hand

Finish: AlTiN Coated

Flute Type: Spiral

Helix Angle: 45 deg

ISO Code: S545.219F2S.0Z5

Length of Cut: 3/8 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 5

Overall Length: 2 in

Series: Elite S545

Shank Diameter: 1/4 in

Shank Type: Cylindrical

Type: Center Cutting High Performance Short Length Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
90 deg cutting edge
1.417 in L minimum clamping
45 deg axial rake
10 deg radial rake
10 deg neck
Ideal for peripheral finish milling in steel, stainless steel, titanium and high temperature alloys
F - Step tool shape
Square nose end mills (also called square end) create sharp, unrounded cuts

Seco Niagara Cutter End Mill, Center Cutting High Performance Short Length Single End Square End, Series: Elite S545, 7/32 in Diameter Cutter, 2 in Overall Length, 3/8 in Length of Cut, 5 Flutes, Spiral Flute, 1/4 in Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Cylindrical Shank, ANSI Code: S545-0.219-F2-S.0-Z5, ISO Code: S545.219F2S.0Z5, Solid Carbide, AlTiN Coated
