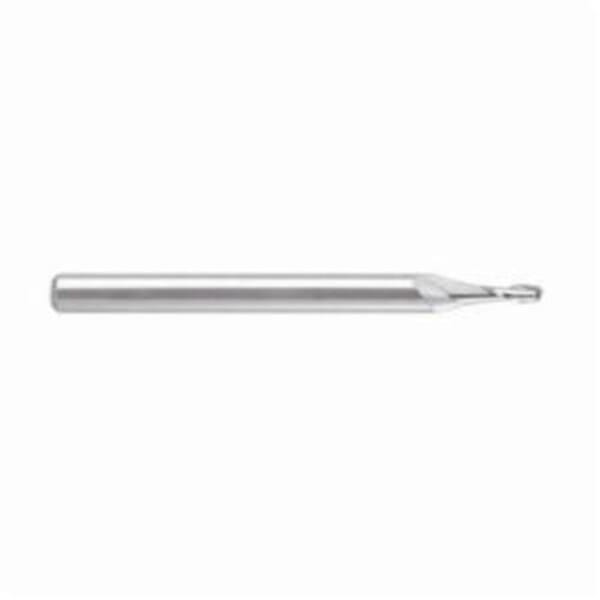

Seco Niagara Cutter 17002387 ME230 Center Cutting Medium Length Single End Square End Micro End Mill, 0.005 in Dia Cutter, 0.015 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

ManufacturerSeco

Part #803659570

MFG #N59570

Seco Niagara Cutter Micro End Mill, Center Cutting Medium Length Single End Square End, Series: ME230, 0.005 in Cutter Dia, 1-1/2 in Overall Length, 0.015 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: ME230-0.005-F3-S.0-Z2, ISO Code: ME230.005F3S.0Z2, Submicron Solid Carbide, Uncoated

$25.67

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: ME230-0.005-F3-S.0-Z2

Country of Origin: US

Cutter Diameter: 0.005 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: ME230.005F3S.0Z2

Length of Cut: 0.015 in

Manufacturer Name: Seco Tools

Material: Submicron Solid Carbide

Number of Flutes: 2

Overall Length: 1-1/2 in

Series: ME230

Shank Diameter: 1/8 in

Shank Type: Cylindrical

Type: Center Cutting Medium Length Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
30 deg axial rake
7 deg radial rake
16 deg neck
F - Step tool shape

Seco Niagara Cutter Micro End Mill, Center Cutting Medium Length Single End Square End, Series: ME230, 0.005 in Cutter Dia, 1-1/2 in Overall Length, 0.015 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: ME230-0.005-F3-S.0-Z2, ISO Code: ME230.005F3S.0Z2, Submicron Solid Carbide, Uncoated
