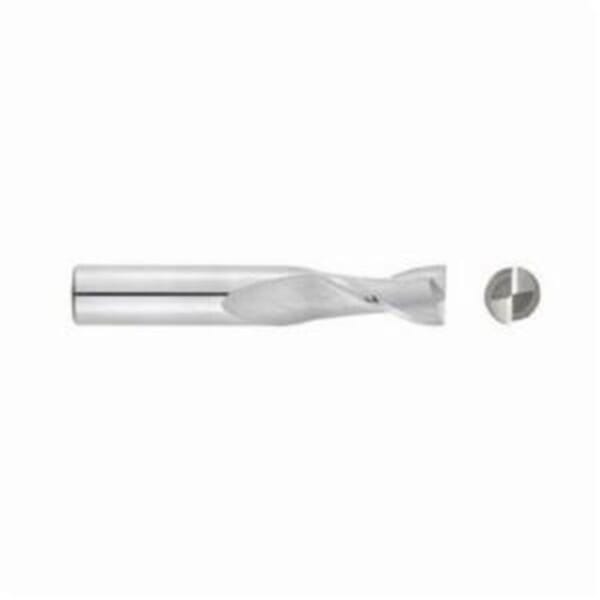

Seco Niagara Cutter 17001154 C230 Center Cutting Extended Reach Single End Square End End Mill, 3/8 in Dia Cutter, 1-1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 6 in OAL, Uncoated

ManufacturerSeco

Part #803655350

MFG #N55350

Seco Niagara Cutter End Mill, Center Cutting Extended Reach Single End Square End, Series: C230, 3/8 in Diameter Cutter, 6 in Overall Length, 1-1/2 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C230-0.375-D6-S.0-Z2, ISO Code: C230.375D6S.0Z2, Solid Carbide, Uncoated

$60.27

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: C230-0.375-D6-S.0-Z2

Country of Origin: US

Cutter Diameter: 3/8 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: C230.375D6S.0Z2

Length of Cut: 1-1/2 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 6 in

Series: C230

Shank Diameter: 3/8 in

Shank Type: Cylindrical

Type: Center Cutting Extended Reach Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
1.562 in L minimum clamping
30 deg axial rake
10 deg radial rake
Square nose end mills create sharp, unrounded cuts
Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tools ability to remove material
Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
D - Cylindrical tool shape

Seco Niagara Cutter End Mill, Center Cutting Extended Reach Single End Square End, Series: C230, 3/8 in Diameter Cutter, 6 in Overall Length, 1-1/2 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C230-0.375-D6-S.0-Z2, ISO Code: C230.375D6S.0Z2, Solid Carbide, Uncoated

Catalog

Manufacturer Name: Seco Tools

ANSI Code: C230-0.375-D6-S.0-Z2

Country of Origin: US

Cutter Diameter: 3/8 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: C230.375D6S.0Z2

Length of Cut: 1-1/2 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 6 in

Series: C230

Shank Diameter: 3/8 in

Shank Type: Cylindrical

Type: Center Cutting Extended Reach Single End Square End

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
1.562 in L minimum clamping
30 deg axial rake
10 deg radial rake
Square nose end mills create sharp, unrounded cuts
Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tools ability to remove material
Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
D - Cylindrical tool shape

Seco Niagara Cutter End Mill, Center Cutting Extended Reach Single End Square End, Series: C230, 3/8 in Diameter Cutter, 6 in Overall Length, 1-1/2 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: C230-0.375-D6-S.0-Z2, ISO Code: C230.375D6S.0Z2, Solid Carbide, Uncoated
