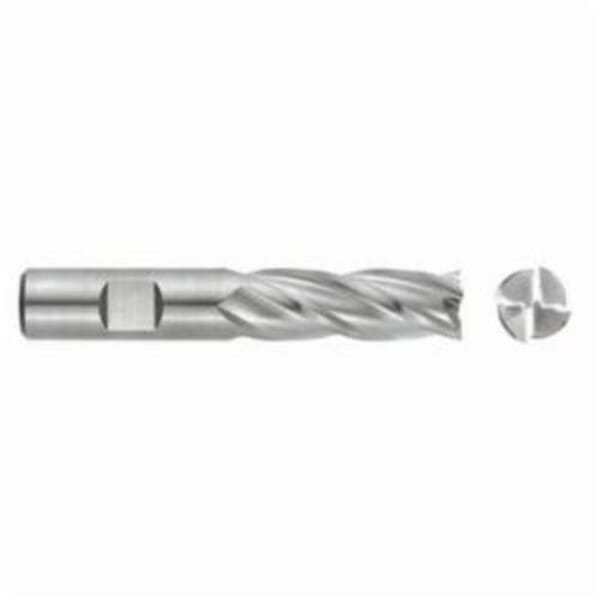

Seco Niagara Cutter 17011709 SPC408 Center Cutting Extended Reach Single End Square End End Mill, 1/4 in Dia Cutter, 1-3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-9/16 in OAL, Uncoated

ManufacturerSeco

Part #803652083

MFG #17011709

Seco Niagara Cutter End Mill, Center Cutting Extended Reach Single End Square End, Series: SPC408, 1/4 in Diameter Cutter, 3-9/16 in Overall Length, 1-3/4 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: SPC408-0.250-F7-S.3-Z4, ISO Code: SPC408.250F7S.3Z4, M42 8% Cobalt, Uncoated

$45.42

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: SPC408-0.250-F7-S.3-Z4

Country of Origin: US

Cutter Diameter: 1/4 in

Cutting Direction: Right Hand

Finish: Uncoated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: SPC408.250F7S.3Z4

Length of Cut: 1-3/4 in

Manufacturer Name: Seco Tools

Material: M42 8% Cobalt

Number of Flutes: 4

Overall Length: 3-9/16 in

Series: SPC408

Shank Diameter: 3/8 in

Shank Type: Weldon Flat

Type: Center Cutting Extended Reach Single End Square End

Cobalt is harder than high speed steel and provides better wear resistance, it is commonly used on high tensile alloys
Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
90 deg cutting edge
1.562 in L minimum clamping
30 deg axial rake
10 deg radial rake
Square nose end mills create sharp, unrounded cuts
Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
F - Step tool shape

Seco Niagara Cutter End Mill, Center Cutting Extended Reach Single End Square End, Series: SPC408, 1/4 in Diameter Cutter, 3-9/16 in Overall Length, 1-3/4 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: SPC408-0.250-F7-S.3-Z4, ISO Code: SPC408.250F7S.3Z4, M42 8% Cobalt, Uncoated
