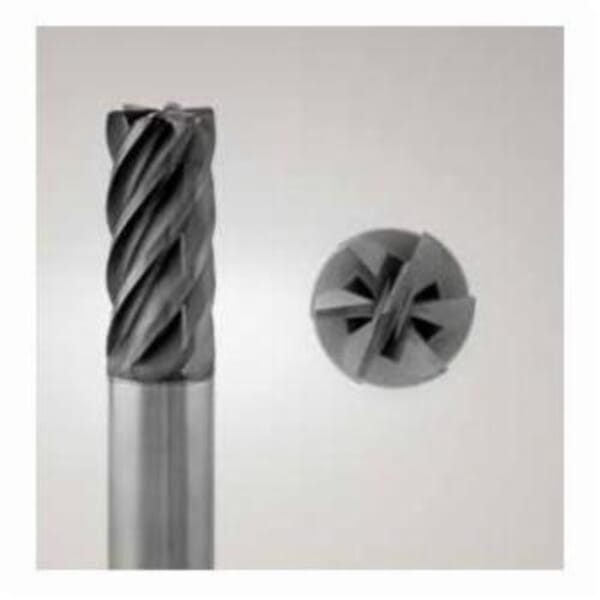

Seco Niagara Cutter 03007645 Elite S638 Center Cutting High Performance Single End Square End Stub Length End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 6 Flutes, 1/2 in Dia Shank, 3 in OAL, AlTiN Coated

ManufacturerSeco

Part #803600457

MFG #N00457

Seco Niagara Cutter End Mill, Center Cutting High Performance Single End Square End Stub Length, Series: Elite S638, 1/2 in Diameter Cutter, 3 in Overall Length, 1-1/4 in Length of Cut, 6 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: S638-0.500-D1-S.0-Z6, ISO Code: S638.500D1S.0Z6, Solid Carbide, AlTiN Coated

$99.57

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: S638-0.500-D1-S.0-Z6

Country of Origin: US

Cutter Diameter: 1/2 in

Cutting Direction: Right Hand

Finish: AlTiN Coated

Flute Type: Spiral

Helix Angle: 38 deg

ISO Code: S638.500D1S.0Z6

Length of Cut: 1-1/4 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 6

Overall Length: 3 in

Series: Elite S638

Shank Diameter: 1/2 in

Shank Type: Cylindrical

Type: Center Cutting High Performance Single End Square End Stub Length

Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Aluminum titanium nitride (AlTiN) is one of the most abrasive-resistant and hardest of the coatings, it is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel
90 deg cutting edge
0.067 in L minimum clamping
38 deg axial rake
10 deg radial rake
Excellent in high speed milling, trochoidal (peel) milling techniques
High performance with minimal deflection
D - Cylindrical tool shape
Variable indexing to reduce harmonics providing smoother cutting and improved surface finish
Designed for peripheral roughing and finishing for stainless steel, titanium and high temperature alloys
Square nose end mills (also called square end) create sharp, unrounded cuts

Seco Niagara Cutter End Mill, Center Cutting High Performance Single End Square End Stub Length, Series: Elite S638, 1/2 in Diameter Cutter, 3 in Overall Length, 1-1/4 in Length of Cut, 6 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 38 deg Helix Angle, Cylindrical Shank, ANSI Code: S638-0.500-D1-S.0-Z6, ISO Code: S638.500D1S.0Z6, Solid Carbide, AlTiN Coated
