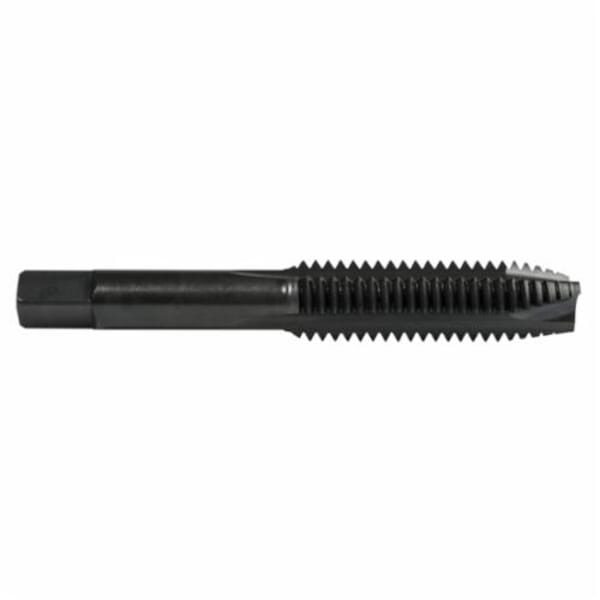

Union Butterfield 6007737 1585A Relieved Spiral Point Tap, Right Hand Cutting, 5/8-11 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Steam Oxide, HSS

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Union Butterfield 6007737 1585A Relieved Spiral Point Tap, Right Hand Cutting, 5/8-11 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Steam Oxide, HSS

ManufacturerUnion Butterfield

Part #724850342

MFG #6007737

UPC #698464023101

Union Butterfield Spiral Point Tap, Relieved, Series: 1585A, Measurement System: Imperial, UNC Thread Standard, 5/8-11 Thread, Plug Chamfer, 3 Flutes, HSS, Steam Oxide, Class of Fit: 2B/3B, Right Hand Cutting Direction, 1-13/16 in Thread Length, 3-13/16 in Overall Length, 0.48 in Shank Diameter, Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit

$29.95

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Chamfer Type: Plug

Class of Fit: 2B/3B

Country of Origin: US

Cutting Direction: Right Hand

Finish/Coating: Steam Oxide

Manufacturer Name: Dormer Pramet

Material: HSS

Material Application: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3-13/16 in

Series: 1585A

Shank Diameter: 0.48 in

Thread Length: 1-13/16 in

Thread Limit: H3

Thread Size: 5/8-11

Thread Standard: UNC

Type: Relieved

Spiral point taps are used to solve the problem of tap breakage in through hole tapping in a wide variety of materials
The angular flutes in the cutting face propel the chips ahead of the cutting zone, thus reducing loading and clogging in the flutes
The 1585 style features eccentrically relieved threads with full pitch diameter relief
These taps are extremely free cutting, resulting in longer tool life
The use of rigid tapping equipment is highly recommended with this style of tap
Steam oxide reduces wear and prevents chip welding in harder ferrous materials

For through hole applications

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Catalog

Manufacturer Name: Dormer Pramet

Chamfer Type: Plug

Class of Fit: 2B/3B

Country of Origin: US

Cutting Direction: Right Hand

Finish/Coating: Steam Oxide

Manufacturer Name: Dormer Pramet

Material: HSS

Material Application: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials

Measurement System: Imperial

Number of Flutes: 3

Overall Length: 3-13/16 in

Series: 1585A

Shank Diameter: 0.48 in

Thread Length: 1-13/16 in

Thread Limit: H3

Thread Size: 5/8-11

Thread Standard: UNC

Type: Relieved

Spiral point taps are used to solve the problem of tap breakage in through hole tapping in a wide variety of materials
The angular flutes in the cutting face propel the chips ahead of the cutting zone, thus reducing loading and clogging in the flutes
The 1585 style features eccentrically relieved threads with full pitch diameter relief
These taps are extremely free cutting, resulting in longer tool life
The use of rigid tapping equipment is highly recommended with this style of tap
Steam oxide reduces wear and prevents chip welding in harder ferrous materials

For through hole applications

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
