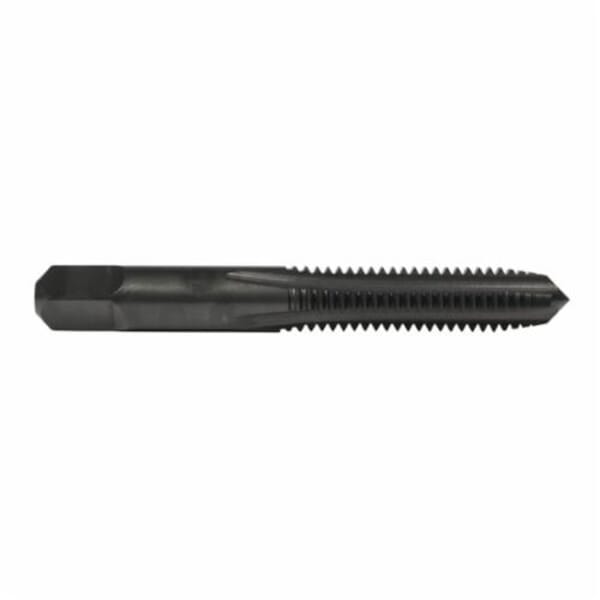

Union Butterfield 6006723 1500A General Purpose Straight Flute Hand Tap, Right Hand Cutting, 3/4-16 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Steam Oxide, HSS

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Dormer Pramet

Union Butterfield 6006723 1500A General Purpose Straight Flute Hand Tap, Right Hand Cutting, 3/4-16 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Steam Oxide, HSS

ManufacturerUnion Butterfield

Part #724850149

MFG #6006723

UPC #698464015359

Union Butterfield Straight Flute Hand Tap, General Purpose, Series: 1500A, Measurement System: Imperial, UNF Thread Standard, 3/4-16 Thread, Plug Chamfer, 4 Flutes, HSS, Steam Oxide, Class of Fit: 3B, Right Hand Cutting Direction, 2 in Thread Length, 4-1/4 in Overall Length, 0.59 in Shank Diameter, Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit

$37.03

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Chamfer Type: Plug

Class of Fit: 3B

Country of Origin: US

Cutting Direction: Right Hand

Finish/Coating: Steam Oxide

Manufacturer Name: Dormer Pramet

Material: HSS

Material Application: Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 4-1/4 in

Series: 1500A

Shank Diameter: 0.59 in

Thread Length: 2 in

Thread Limit: H3

Thread Size: 3/4-16

Thread Standard: UNF

Type: General Purpose

Steam oxide treated to reduce wear and chip welding in harder ferrous materials
Steam tempering gives a strongly adhering blue oxide surface that acts to retain cutting fluid and prevent chip to tool welding, thereby counteracting the formation of a built-up edge
Steam tempering can be applied to any bright tool but is most effective on drills and taps
A medium alloyed high speed steel that has good machinability and good performance
HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications

For through or blind hole applications

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Specification Sheet

Catalog

Manufacturer Name: Dormer Pramet

Chamfer Type: Plug

Class of Fit: 3B

Country of Origin: US

Cutting Direction: Right Hand

Finish/Coating: Steam Oxide

Manufacturer Name: Dormer Pramet

Material: HSS

Material Application: Steel, Stainless Steel, Copper, Titanium, Nickel, Cast Iron, Aluminum Magnesium and Synthetic Materials

Measurement System: Imperial

Number of Flutes: 4

Overall Length: 4-1/4 in

Series: 1500A

Shank Diameter: 0.59 in

Thread Length: 2 in

Thread Limit: H3

Thread Size: 3/4-16

Thread Standard: UNF

Type: General Purpose

Steam oxide treated to reduce wear and chip welding in harder ferrous materials
Steam tempering gives a strongly adhering blue oxide surface that acts to retain cutting fluid and prevent chip to tool welding, thereby counteracting the formation of a built-up edge
Steam tempering can be applied to any bright tool but is most effective on drills and taps
A medium alloyed high speed steel that has good machinability and good performance
HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications

For through or blind hole applications

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Specification Sheet

Catalog
