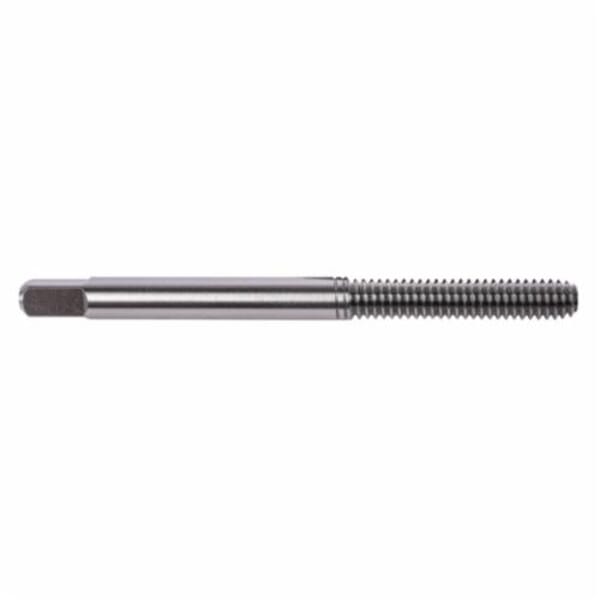

Union Butterfield 6009410 3300 Fluteless Union Butterfield Forming Tap, M8x1.25 Thread, D9 Thread Limit

ManufacturerUnion Butterfield

Part #724810509

MFG #6009410

UPC #698464052972

Union Butterfield Union Butterfield Forming Tap, Fluteless, Series: 1M, Measurement System: Metric, M8x1.25, Bottoming Chamfer, 1-1/8 in Thread Length, 2-23/32 in Overall Length, Right Hand Cutting, Class of Fit: 6H, 0.238 in Shank Dia, 6.7 mm Tap Drill, 3/8 in Square Size, HSS, Bright, D9 Thread Limit

$15.07

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Dormer Pramet

Chamfer Type: Bottoming

Class of Fit: 6H

Country of Origin: US

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Dormer Pramet

Material: HSS

Measurement System: Metric

Overall Length: 2-23/32 in

Series: 3300

Shank Diameter: 0.238 in

Square Size: 3/8 in

Tap Drill Size: 6.7 mm

Thread Length: 1-1/8 in

Thread Limit: D9

Thread Size: M8x1.25

Type: Fluteless

The Rol-Form style has 2-4 grooves (depending on size) extending the full length of thread to assure lubrication in the forming zone and to eliminate build up of the hydraulic pressure in blind holes
Particularly suited to blind holes in thin walled die-castings

Union Butterfield Union Butterfield Forming Tap, Fluteless, Series: 1M, Measurement System: Metric, M8x1.25, Bottoming Chamfer, 1-1/8 in Thread Length, 2-23/32 in Overall Length, Right Hand Cutting, Class of Fit: 6H, 0.238 in Shank Dia, 6.7 mm Tap Drill, 3/8 in Square Size, HSS, Bright, D9 Thread Limit

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved

Catalog

Manufacturer Name: Dormer Pramet

Chamfer Type: Bottoming

Class of Fit: 6H

Country of Origin: US

Cutting Direction: Right Hand

Finish/Coating: Bright

Manufacturer Name: Dormer Pramet

Material: HSS

Measurement System: Metric

Overall Length: 2-23/32 in

Series: 3300

Shank Diameter: 0.238 in

Square Size: 3/8 in

Tap Drill Size: 6.7 mm

Thread Length: 1-1/8 in

Thread Limit: D9

Thread Size: M8x1.25

Type: Fluteless

The Rol-Form style has 2-4 grooves (depending on size) extending the full length of thread to assure lubrication in the forming zone and to eliminate build up of the hydraulic pressure in blind holes
Particularly suited to blind holes in thin walled die-castings

Union Butterfield Union Butterfield Forming Tap, Fluteless, Series: 1M, Measurement System: Metric, M8x1.25, Bottoming Chamfer, 1-1/8 in Thread Length, 2-23/32 in Overall Length, Right Hand Cutting, Class of Fit: 6H, 0.238 in Shank Dia, 6.7 mm Tap Drill, 3/8 in Square Size, HSS, Bright, D9 Thread Limit

ANSI Specified|PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov|CSA Approved
