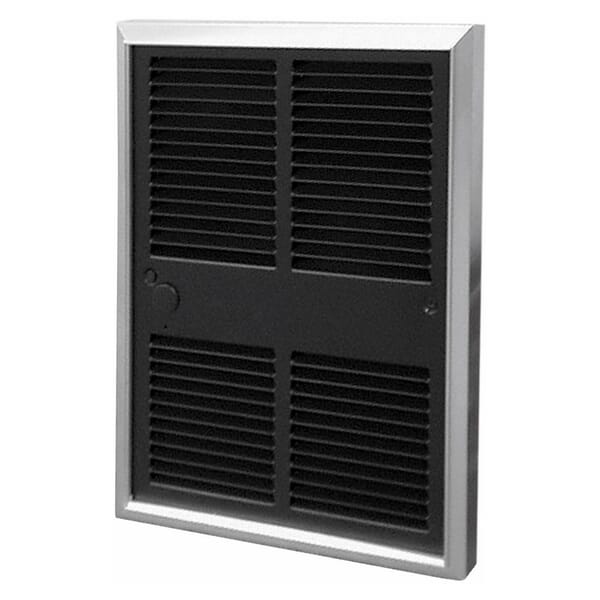

TPI E3055T2DWB 3000 1-Phase Fan Forced Midsized Standard Wall Heater With In-Built Double Pole Tamperproof Thermostat, 5120 Btu/hr Capacity, 120 VAC, 0.75/1.5 kW Power Rating

ManufacturerTPI

Part #633499621

MFG #E3055T2DWB

UPC #686334996211

TPI Wall Heater, 1-Phase Fan Forced Midsized Standard, Series: 3000, 5120 Btu/hr, 120 VAC, 12.5 A, 0.75/1.5 kW, 100 cfm, 1060 rpm, 90 deg F, Wall Mount, Steel, Powder Coated, 9-1/4 in W x 3-5/8 in D x 12-1/8 in H

$397.90

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: TPI Corporation

Amperage Rating: 12.5 A

Capacity: 5120 Btu/hr

Country of Origin: US

Dimensions: 9-1/4 in W x 3-5/8 in D x 12-1/8 in H

Finish: Powder Coated

Flow Rate: 100 cfm

Manufacturer Name: TPI Corporation

Material: Steel

Mounting Type: Wall

Power Rating: 0.75/1.5 kW

Series: 3000

Speed: 1060 rpm

Temperature Rating: 90 deg F

Type: 1-Phase Fan Forced Midsized Standard

Voltage Rating: 120 VAC

Wattage selectable at time of installation
Models shipped wired to highest wattage
Approved for horizontal mounting - right or left discharge
Fan purge circuit
Disconnect switch
Drywall depth embossments on back can
18 ga powder coated steel and extruded aluminum front
Manual reset thermal limit switch
Steel block fin element
Approved for wall or ceiling installation

Indoor-Commercial and Industrial Applications

ARRA Compliant|Buy American Act Compliant|cETLus Listed|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov

Catalog

Specification Sheet

Warranty Information

Manufacturer Name: TPI Corporation

Amperage Rating: 12.5 A

Capacity: 5120 Btu/hr

Country of Origin: US

Dimensions: 9-1/4 in W x 3-5/8 in D x 12-1/8 in H

Finish: Powder Coated

Flow Rate: 100 cfm

Manufacturer Name: TPI Corporation

Material: Steel

Mounting Type: Wall

Power Rating: 0.75/1.5 kW

Series: 3000

Speed: 1060 rpm

Temperature Rating: 90 deg F

Type: 1-Phase Fan Forced Midsized Standard

Voltage Rating: 120 VAC

Wattage selectable at time of installation
Models shipped wired to highest wattage
Approved for horizontal mounting - right or left discharge
Fan purge circuit
Disconnect switch
Drywall depth embossments on back can
18 ga powder coated steel and extruded aluminum front
Manual reset thermal limit switch
Steel block fin element
Approved for wall or ceiling installation

Indoor-Commercial and Industrial Applications

Catalog

Specification Sheet

Warranty Information
