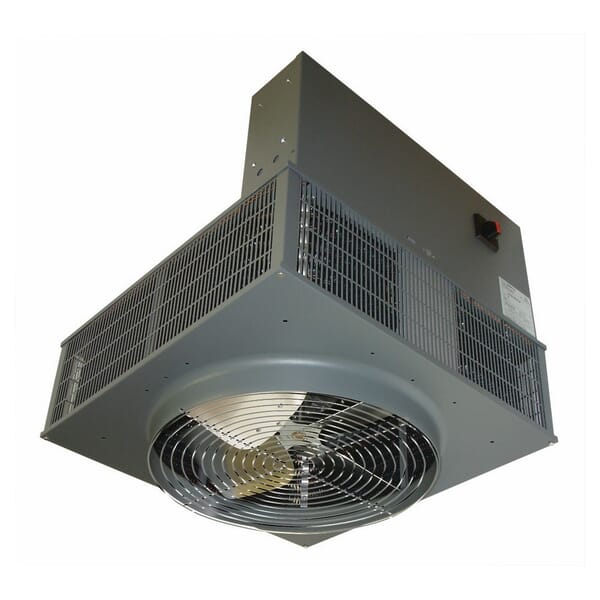

Contact UsTPI H3H2625CA1 2600 3-Phase Standard Unit Heater, 25 kW, 240 VAC
ManufacturerTPI
Part #633471752
MFG #H3H2625CA1
UPC #686334717526
TPI Unit Heater, 3-Phase Standard, Series: 2600, 240 VAC, 60.21 A, 25 kW, 3300 cfm, 1570 rpm, 24 deg F, Panel/Downflow Mount, 6 ft Mounting Height, Steel, Gray, Epoxy Powder Coated, 27 in W x 27 in D x 20-1/2 in H
$4,432.10
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â TPI CorporationAmperage Rating:Â 60.21 AColor:Â GrayCountry of Origin:Â USDimensions:Â 27 in W x 27 in D x 20-1/2 in HFinish:Â Epoxy Powder CoatedFlow Rate:Â 3300 cfmManufacturer Name:Â TPI CorporationMaterial:Â SteelMounting Height:Â 6 ftMounting Type:Â Panel/DownflowPower Rating:Â 25 kWSeries:Â 2600Speed:Â 1570 rpmTemperature Rating:Â 24 deg FType:Â 3-Phase StandardVoltage Rating:Â 240 VAC
- 16 ga steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
- Corrosion resistant element with steel sheath and steel spiral fins
- All units come equipped with manual reset limit controls to de-energize the heater should an over temperature situation occur
- Totally enclosed, 2-speed, 1-phase permanently lubricated and thermally protected motors with sleeve bearings on 24 to 50 kW models
- 1570 rpm max axial flow fan blade
- All models equipped with fan purge which allows fan to operate after elements are de-energized to purge residual heat
- Equipped with in-built disconnect switch
- Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
- Not recommended for mounting with threaded rod or chain
- Elements shall consist of nickel-chromium alloy resistance wire embedded and completely surrounded in magnesium oxide, enclosed and swaged into corrosion resistant sheath
- Heaters shall be designed for a single supply circuit with elements, motor and control circuits subdivided and fused to conform with the latest National electric Code and OSHA requirements
- All 3-phase heaters shall have balanced phases
- Overheat protection
- Indoor-Commercial, Industrial-Downflow and High Bay Areas
- ARRA Compliant|Buy American Act Compliant|cETLus Listed|OSHA Compliant|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer|and chromium which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
- Manufacturer Name:Â TPI CorporationAmperage Rating:Â 60.21 AColor:Â GrayCountry of Origin:Â USDimensions:Â 27 in W x 27 in D x 20-1/2 in HFinish:Â Epoxy Powder CoatedFlow Rate:Â 3300 cfmManufacturer Name:Â TPI CorporationMaterial:Â SteelMounting Height:Â 6 ftMounting Type:Â Panel/DownflowPower Rating:Â 25 kWSeries:Â 2600Speed:Â 1570 rpmTemperature Rating:Â 24 deg FType:Â 3-Phase StandardVoltage Rating:Â 240 VAC
- 16 ga steel cabinet with epoxy powder coated finish and control compartment with a hinged and latched access door
- Corrosion resistant element with steel sheath and steel spiral fins
- All units come equipped with manual reset limit controls to de-energize the heater should an over temperature situation occur
- Totally enclosed, 2-speed, 1-phase permanently lubricated and thermally protected motors with sleeve bearings on 24 to 50 kW models
- 1570 rpm max axial flow fan blade
- All models equipped with fan purge which allows fan to operate after elements are de-energized to purge residual heat
- Equipped with in-built disconnect switch
- Unit can be mounted using optional mounting bracket or field constructed angle iron bracket
- Not recommended for mounting with threaded rod or chain
- Elements shall consist of nickel-chromium alloy resistance wire embedded and completely surrounded in magnesium oxide, enclosed and swaged into corrosion resistant sheath
- Heaters shall be designed for a single supply circuit with elements, motor and control circuits subdivided and fused to conform with the latest National electric Code and OSHA requirements
- All 3-phase heaters shall have balanced phases
- Overheat protection
- Indoor-Commercial, Industrial-Downflow and High Bay Areas
- ARRA Compliant|Buy American Act Compliant|cETLus Listed|OSHA Compliant|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer|and chromium which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
