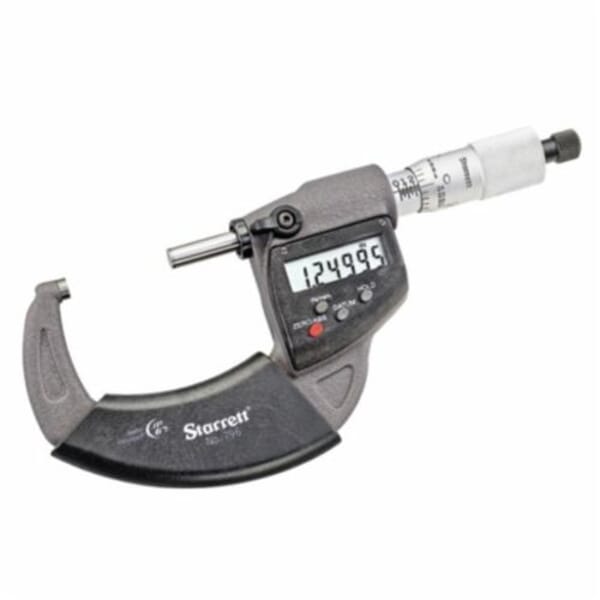

Starrett 796XRL-2 Electronic Digital Outside Micrometer, 1 to 2 in Measuring, Graduations 0.00005 in, LCD Display, Carbide Tip, Satin Chrome

ManufacturerStarrett

Part #530469090

MFG #01117

UPC #049659690903

Starrett Outside Micrometer, Electronic Digital, Series: 796, 1 to 2 in Measuring, +/-0.0001 in Accuracy, Graduations: 0.00005 in, 0.00005 in Resolution, Flat Anvil, Flat Spindle, 1/4 in Spindle Diameter, Ratchet Thimble, LCD Display, 3 VDC Battery Power Source, Carbide Tip, Satin Chrome, 7-3/8 in L x 23/32 in W x 3-1/4 in H Dimensions

$532.48

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: L.S. Starrett

Accuracy: +/-0.0001 in

Anvil Type: Flat

Country of Origin: US

Dimensions: 7-3/8 in L x 23/32 in W x 3-1/4 in H

Display Type: LCD

Finish: Satin Chrome

Graduations: 0.00005 in

Manufacturer Name: L.S. Starrett

Material: Carbide Tip

Measuring Range: 1 to 2 in

Power Source: 3 VDC Battery

Resolution: 0.00005 in

Series: 796

Spindle Diameter: 1/4 in

Spindle Type: Flat

Thimble Type: Ratchet

Type: Electronic Digital

IP67 protection against coolants, water, chips, dust and dirt often found in machine shop environments
Balanced frame design for comfortable and accurate measuring
Starrett no-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights indoors or filters out UV light
Compatible with starrett datasure wireless data collection systems
Large, easy-to-read, high contrast LCD digital readout
Hard and stable one-piece friction thimble permits one hand operation of micrometer and uniform contact pressure
Ability to zero tool at any position as well as retain and return to the true zero reading of the micrometer
Micro-lapped measuring faces
Inch/millimeter metric conversion provides simple, universal, standardized unit of measurement at any position
Spindle lock, automatic off, measurement hold button, SPC output capability

(2) 3 V Battery
