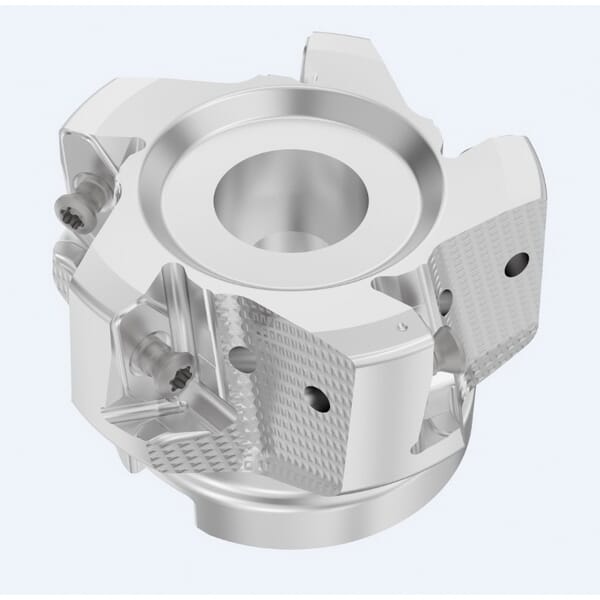

Seco 03290252 5-Flute Square Shoulder Indexable Face Mill, ANSI Code: R220.64-02.50-ZO16-5A, 2 in Dia Cutting, 1.85 in Dia Shank, 1.575 in OAL, ZOMX16 Insert, 0.59 in Max Depth of Cut, 3/4 in Dia Arbor Hole, 90 deg Lead Angle

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 03290252 5-Flute Square Shoulder Indexable Face Mill, ANSI Code: R220.64-02.50-ZO16-5A, 2 in Dia Cutting, 1.85 in Dia Shank, 1.575 in OAL, ZOMX16 Insert, 0.59 in Max Depth of Cut, 3/4 in Dia Arbor Hole, 90 deg Lead Angle

ManufacturerSeco

Part #288590252

MFG #03290252

Seco Indexable Face Mill, 5-Flute Square Shoulder, 2 in Cutting Dia, 1.575 in Overall Length, 0.59 in Maximum Depth of Cut, ZOMX16 Insert, 5 Inserts, Insert Compatibility: ZOMX16.., 1.575 in Head Length, 1.85 in Shank Dia, 3/4 in Arbor Hole, 90 deg Lead Angle, Right Hand Cutting, ANSI Code: R220.64-02.50-ZO16-5A, ISO Code: R220.64-02.50-ZO16-5A, Steel, Yes

$875.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: R220.64-02.50-ZO16-5A
Arbor Hole Diameter: 3/4 in
Country of Origin: SE
Cutting Diameter: 2 in
Cutting Direction: Right Hand
Head Length: 1.575 in
Insert Compatibility: ZOMX16..
Insert Style: ZOMX16
ISO Code: R220.64-02.50-ZO16-5A
Lead Angle: 90 deg
Manufacturer Name: Seco Tools
Material: Steel
Maximum Depth of Cut: 0.59 in
Number of Inserts: 5
Overall Length: 1.575 in
Shank Diameter: 1.85 in
Through Coolant (Yes/No): Yes
Type: 5-Flute Square Shoulder
: Seco Indexable Face Mill, 5-Flute Square Shoulder, 2 in Cutting Dia, 1.575 in Overall Length, 0.59 in Maximum Depth of Cut, ZOMX16 Insert, 5 Inserts, Insert Compatibility: ZOMX16.., 1.575 in Head Length, 1.85 in Shank Dia, 3/4 in Arbor Hole, 90 deg Lead Angle, Right Hand Cutting, ANSI Code: R220.64-02.50-ZO16-5A, ISO Code: R220.64-02.50-ZO16-5A, Steel, Yes
