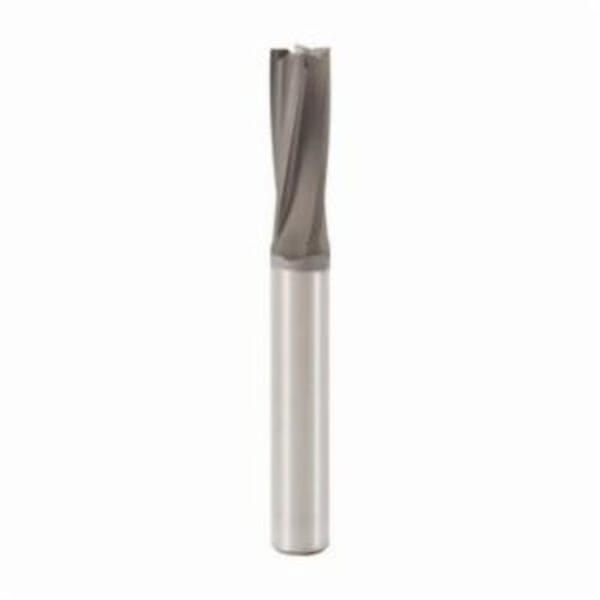

Seco JABRO Composites 02843013 Composites JC880 Center Cutting Low Helix Single End Mill, 5 mm Dia Cutter, 0.2 mm Corner Radius, 15 mm Length of Cut, 4 Flutes, 5 mm Dia Shank, 50 mm OAL, DURA/CVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco JABRO Composites 02843013 Composites JC880 Center Cutting Low Helix Single End Mill, 5 mm Dia Cutter, 0.2 mm Corner Radius, 15 mm Length of Cut, 4 Flutes, 5 mm Dia Shank, 50 mm OAL, DURA/CVD Coated

ManufacturerSeco

Part #288584932

MFG #02843013

Seco JABRO Composites End Mill, Center Cutting Low Helix Single End, Series: Composites JC880, 5 mm Diameter Cutter, 0.2 mm Corner Radius, 50 mm Overall Length, 15 mm Length of Cut, 4 Flutes, Right Spiral Flute, 5 mm Shank Diameter, Right Hand Cutting Direction, 10 deg Helix Angle, Cylindrical Shank, ANSI Code: 880050R020Z4.0-DURA, ISO Code: 880050R020Z4.0-DURA, Solid Carbide, DURA/CVD Coated

$153.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: 880050R020Z4.0-DURA
Corner Radius: 0.2 mm
Country of Origin: NL, US
Cutter Diameter: 5 mm
Cutting Direction: Right Hand
Finish: DURA/CVD Coated
Flute Type: Right Spiral
Helix Angle: 10 deg
ISO Code: 880050R020Z4.0-DURA
Length of Cut: 15 mm
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 4
Overall Length: 50 mm
Series: Composites JC880, JABRO Composites JC880
Shank Diameter: 5 mm
Shank Type: Cylindrical
Type: Center Cutting Low Helix Single End
: The JABRO range of milling tools, with CVD diamond coating to reduce wear, is designed for burrless (top and bottom) machining, side milling and 3D copy milling, contouring and slotting of layered carbon fiber and glass fiber composites as well as high performance engineering plastics such as peek and honeycomb materials.

: Manufacturer Name: Seco Tools
ANSI Code: 880050R020Z4.0-DURA
Corner Radius: 0.2 mm
Country of Origin: NL, US
Cutter Diameter: 5 mm
Cutting Direction: Right Hand
Finish: DURA/CVD Coated
Flute Type: Right Spiral
Helix Angle: 10 deg
ISO Code: 880050R020Z4.0-DURA
Length of Cut: 15 mm
Manufacturer Name: Seco Tools
Material: Solid Carbide
Number of Flutes: 4
Overall Length: 50 mm
Series: Composites JC880, JABRO Composites JC880
Shank Diameter: 5 mm
Shank Type: Cylindrical
Type: Center Cutting Low Helix Single End
: The JABRO range of milling tools, with CVD diamond coating to reduce wear, is designed for burrless (top and bottom) machining, side milling and 3D copy milling, contouring and slotting of layered carbon fiber and glass fiber composites as well as high performance engineering plastics such as peek and honeycomb materials.
