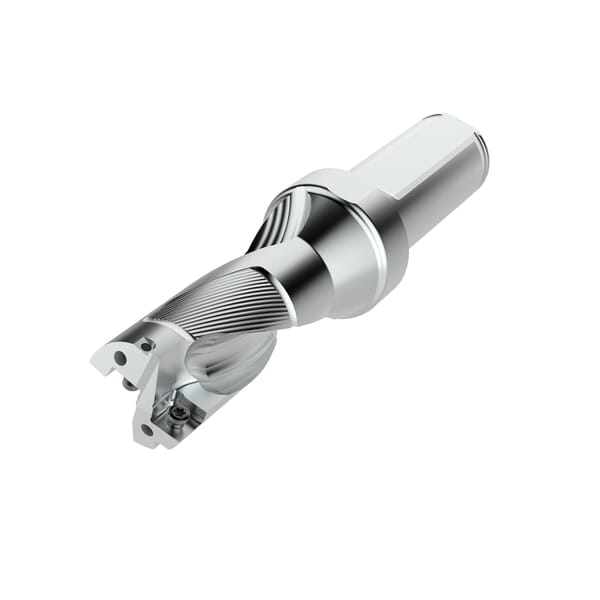

Seco 03080727 Perfomax SD522 Indexable Insert Drill, 1.032 in Drill, 1.654 in Modular Connection, 1-1/4 in Dia Shank, 2XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 5.616 in OAL, 2.06 in D Max Drill

ManufacturerSeco

Part #288580727

MFG #03080727

Seco Indexable Insert Drill, Series: Perfomax SD522, 1.032 in Drill, 1-1/4 in Shank Diameter, 2-3/8 in Shank Length, ISO 9766 Shank, 1.654 in Modular Connection, SPGX/SCGX Insert, 2.06 in Maximum Drill Depth, 5.616 in Overall Length, 1.032 in Diameter, 2XD Drill Depth by Diameter Ratio, 2 Drill Inserts, Insert Compatibility: SPGX0903 Center, SCGX070308 Peripheral, 2.257 in Flute Length, Yes Through Coolant

$704.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 1.032 in

Drill Depth by Diameter Ratio: 2XD

Drill Size: 1.032 in

Flute Length: 2.257 in

Insert Compatibility: SPGX0903 Center, SCGX070308 Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 2.06 in

Modular Connection Size: 1.654 in

Number of Drill Inserts: 2

Overall Length: 5.616 in

Series: Perfomax SD522

Shank Diameter: 1-1/4 in

Shank Length: 2-3/8 in

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
