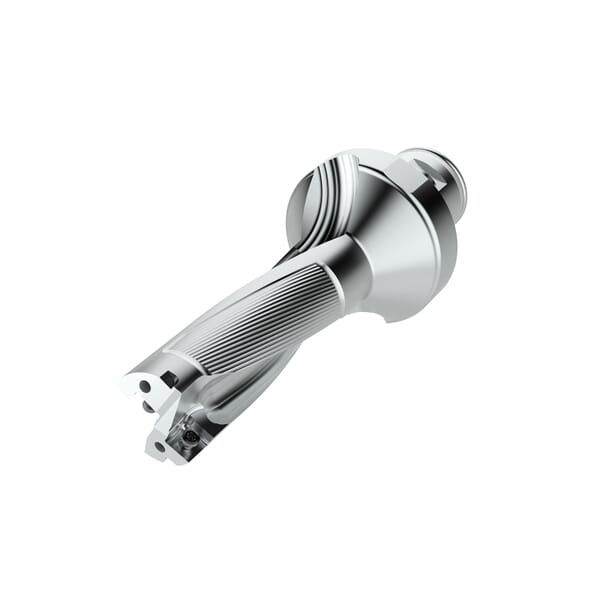

Seco 03080627 Perfomax SD523 Indexable Insert Drill, 28 mm Drill, ABS 50 Modular Connection, 28 mm Dia Shank, 3XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 145 mm OAL, 84 mm D Max Drill

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco 03080627 Perfomax SD523 Indexable Insert Drill, 28 mm Drill, ABS 50 Modular Connection, 28 mm Dia Shank, 3XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 145 mm OAL, 84 mm D Max Drill

ManufacturerSeco

Part #288580627

MFG #03080627

Seco Indexable Insert Drill, Series: Perfomax SD523, 28 mm Drill, 28 mm Shank Dia, 31 mm Shank Length, Modular Connection Shank, ABS 50 Modular Connection Size, SPGX/SCGX Insert, 84 mm Maximum Drill Depth, 145 mm Overall Length, 28 mm Dia, 3XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: SPGX0903 Center, SCGX070308 Peripheral, 89 mm Flute Length, Yes Through Coolant (Yes/No)

$861.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 28 mm

Drill Depth by Diameter Ratio: 3XD

Drill Size: 28 mm

Flute Length: 89 mm

Insert Compatibility: SPGX0903 Center, SCGX070308 Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 84 mm

Modular Connection Size: ABS 50

Number of Drill Inserts: 2

Overall Length: 145 mm

Series: Perfomax SD523

Shank Diameter: 28 mm

Shank Length: 31 mm

Shank Type: Modular Connection

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
