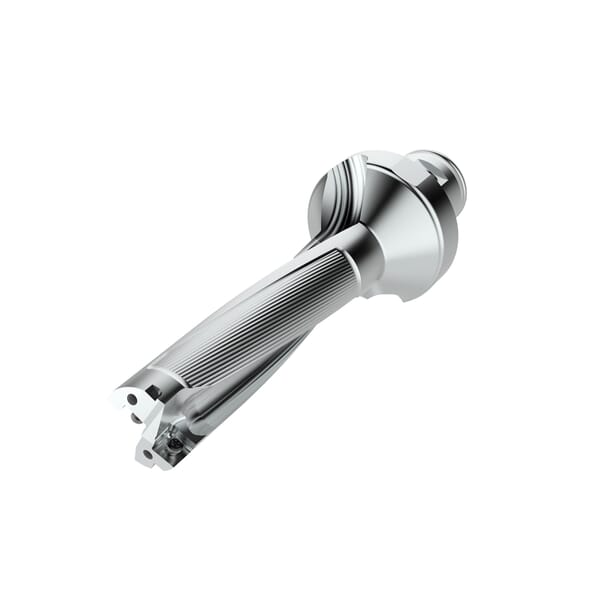

Seco 03080327 Perfomax SD524 Indexable Insert Drill, 17.5 mm Drill, ABS 50 Modular Connection, 28 mm Dia Shank, 4XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 131 mm OAL, 70 mm D Max Drill

ManufacturerSeco

Part #288580327

MFG #03080327

Seco Indexable Insert Drill, Series: Perfomax SD524, 17.5 mm Drill, 28 mm Shank Dia, 31 mm Shank Length, Modular Connection Shank, ABS 50 Modular Connection Size, SPGX/SCGX Insert, 70 mm Maximum Drill Depth, 131 mm Overall Length, 17.5 mm Dia, 4XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: SPGX0602 Center, SCGX050204 Peripheral, 70 mm Flute Length, Yes Through Coolant (Yes/No)

$741.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 17.5 mm

Drill Depth by Diameter Ratio: 4XD

Drill Size: 17.5 mm

Flute Length: 70 mm

Insert Compatibility: SPGX0602 Center, SCGX050204 Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 70 mm

Modular Connection Size: ABS 50

Number of Drill Inserts: 2

Overall Length: 131 mm

Series: Perfomax SD524

Shank Diameter: 28 mm

Shank Length: 31 mm

Shank Type: Modular Connection

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
