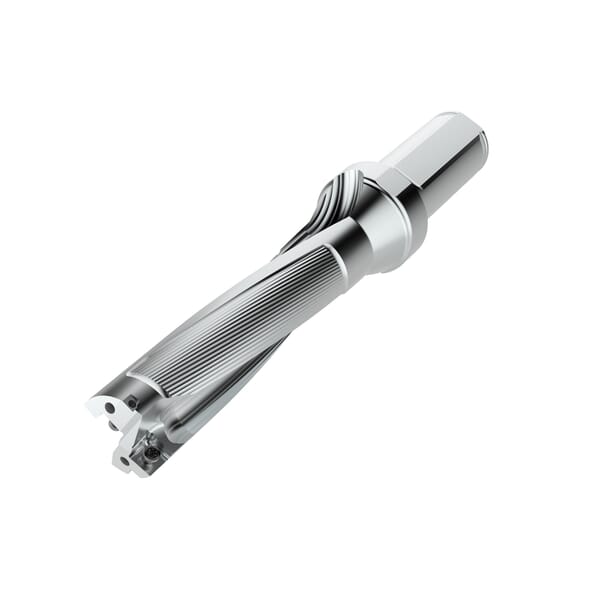

Seco 03080320 Perfomax SD524 Indexable Insert Drill, 1.437 in Drill, 1.969 in Modular Connection, 1-1/2 in Dia Shank, 4XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 9.556 in OAL, 5-3/4 in D Max Drill

ManufacturerSeco

Part #288580320

MFG #03080320

Seco Indexable Insert Drill, Series: Perfomax SD524, 1.437 in Drill, 1-1/2 in Shank Dia, 2-5/8 in Shank Length, ISO 9766 Shank, 1.969 in Modular Connection Size, SPGX/SCGX Insert, 5-3/4 in Maximum Drill Depth, 9.556 in Overall Length, 1.437 in Dia, 4XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: SPGX11T3 Center, SCGX11T308 Peripheral, 5.947 in Flute Length, Yes Through Coolant (Yes/No)

$1,050.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 1.437 in

Drill Depth by Diameter Ratio: 4XD

Drill Size: 1.437 in

Flute Length: 5.947 in

Insert Compatibility: SPGX11T3 Center, SCGX11T308 Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 5-3/4 in

Modular Connection Size: 1.969 in

Number of Drill Inserts: 2

Overall Length: 9.556 in

Series: Perfomax SD524

Shank Diameter: 1-1/2 in

Shank Length: 2-5/8 in

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Catalog

Manufacturer Name: Seco Tools

Country of Origin: SE

Diameter: 1.437 in

Drill Depth by Diameter Ratio: 4XD

Drill Size: 1.437 in

Flute Length: 5.947 in

Insert Compatibility: SPGX11T3 Center, SCGX11T308 Peripheral

Insert Style: SPGX/SCGX

Manufacturer Name: Seco Tools

Maximum Drill Depth: 5-3/4 in

Modular Connection Size: 1.969 in

Number of Drill Inserts: 2

Overall Length: 9.556 in

Series: Perfomax SD524

Shank Diameter: 1-1/2 in

Shank Length: 2-5/8 in

Shank Type: ISO 9766

Through Coolant (Yes/No): Yes

Effective chip control for long chipping ductile materials
Fast and efficient chip evacuation
Higher cutting parameters for increased drilling output
Longer tool life gives reduced tool cost
Exceptional process predictability and reliability
Better hole tolerance

Perfomax is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.
