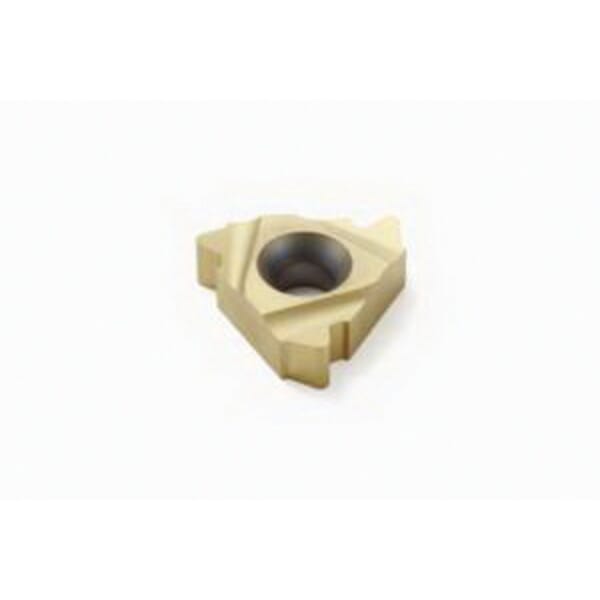

Seco 00075915 Snap-Tap Laydown Threading Insert, ANSI Code: 27NR4API506 CP300, 27NR Insert, 4 TPI, Internal Thread, API Rotary Drilling Connection Thread, Right Hand Cutting, Manufacturers Grade: CP300, Material Grade: P

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00075915 Snap-Tap Laydown Threading Insert, ANSI Code: 27NR4API506 CP300, 27NR Insert, 4 TPI, Internal Thread, API Rotary Drilling Connection Thread, Right Hand Cutting, Manufacturers Grade: CP300, Material Grade: P

ManufacturerSeco

Part #288575915

MFG #00075915

Seco Threading Insert, Laydown, Series: Snap-Tap, 27NR Insert, 27 Insert, Internal, API Rotary Drilling Connection, 4, 15.9 mm Inscribed Circle, 6.2 mm Thickness, 27 mm Length, ANSI Code: 27NR4API506 CP300, ISO Code: 27NR4API506 CP300, 0.64 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: CP300, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: P

$95.40

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: 27NR4API506 CP300
Corner Radius: 0.64 mm
Country of Origin: IN
Cutting Direction: Right Hand
Finish: PVD-TiAlN+TiN Coated
Included Angle: 60 deg
Inscribed Circle: 15.9 mm
Insert Size: 27
Insert Style: 27NR
ISO Code: 27NR4API506 CP300
Length: 27 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP300
Material: Carbide
Material Grade: P
Series: Snap-Tap
Thickness: 6.2 mm
Thread Standard: API Rotary Drilling Connection
Thread Type: Internal
Threads per Inch: 4
Type: Laydown
: Seco Threading Insert, Laydown, Series: Snap-Tap, 27NR Insert, 27 Insert, Internal, API Rotary Drilling Connection, 4, 15.9 mm Inscribed Circle, 6.2 mm Thickness, 27 mm Length, ANSI Code: 27NR4API506 CP300, ISO Code: 27NR4API506 CP300, 0.64 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: CP300, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: P

: Manufacturer Name: Seco Tools
ANSI Code: 27NR4API506 CP300
Corner Radius: 0.64 mm
Country of Origin: IN
Cutting Direction: Right Hand
Finish: PVD-TiAlN+TiN Coated
Included Angle: 60 deg
Inscribed Circle: 15.9 mm
Insert Size: 27
Insert Style: 27NR
ISO Code: 27NR4API506 CP300
Length: 27 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP300
Material: Carbide
Material Grade: P
Series: Snap-Tap
Thickness: 6.2 mm
Thread Standard: API Rotary Drilling Connection
Thread Type: Internal
Threads per Inch: 4
Type: Laydown
: Seco Threading Insert, Laydown, Series: Snap-Tap, 27NR Insert, 27 Insert, Internal, API Rotary Drilling Connection, 4, 15.9 mm Inscribed Circle, 6.2 mm Thickness, 27 mm Length, ANSI Code: 27NR4API506 CP300, ISO Code: 27NR4API506 CP300, 0.64 mm Corner Radius, 60 deg Included Angle, Manufacturers Grade: CP300, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: P
