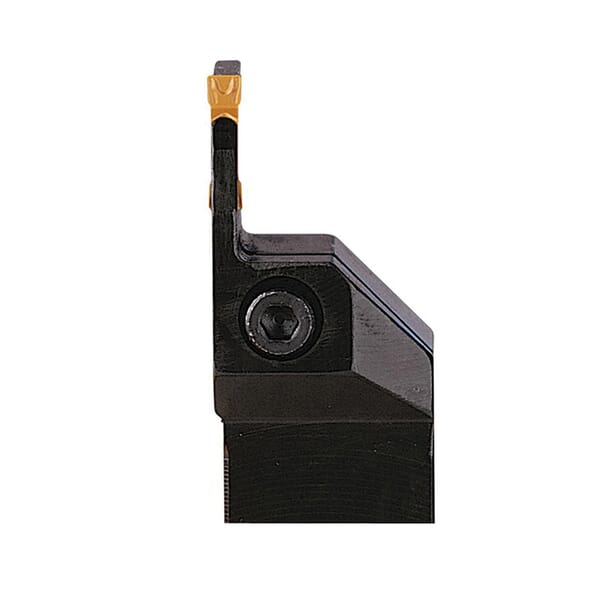

Seco 00068779 MDT Indexable Turning Tool Holder, ANSI Code: CFMR2525M03, CFM Tool Holder, LC..1603.. Insert, Right Hand Cutting, 25 mm Square Shank, 90 deg Lead Angle, 150 mm OAL

ManufacturerSeco

Part #288568779

MFG #00068779

Seco Indexable Turning Tool Holder, Series: MDT, CFM Tool Holder, 150 mm Overall Length, Square Shank, 25 mm Shank, Insert Compatibility: LC..1603.., 3 mm Insert Seat, Right Hand Cutting, 26.5 mm Back of Bar to Cutting Edge, 90 deg Lead Angle, 36 mm Head Length, ANSI Code: CFMR2525M03, ISO Code: CFMR2525M03, Steel

$250.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CFMR2525M03
Back of Bar to Cutting Edge: 26.5 mm
Country of Origin: IN
Cutting Direction: Right Hand
Head Length: 36 mm
Insert Compatibility: LC..1603..
Insert Seat Size: 3 mm
ISO Code: CFMR2525M03
Lead Angle: 90 deg
Manufacturer Name: Seco Tools
Material: Steel
Overall Length: 150 mm
Series: MDT
Shank Size: 25 mm
Shank Type: Square
Tool Holder Style: CFM
: The highly stable and reliable Seco MDT (Multi-Directional turning) system consists of holders and inserts that offers excellent performance in thread turning operations. Products are available for both external and internal threads. Its unique clamping method is a combination of V-shaped top clamp and serrated contact surfaces between the underside of the insert and tool holder, resulting in superb stability.
