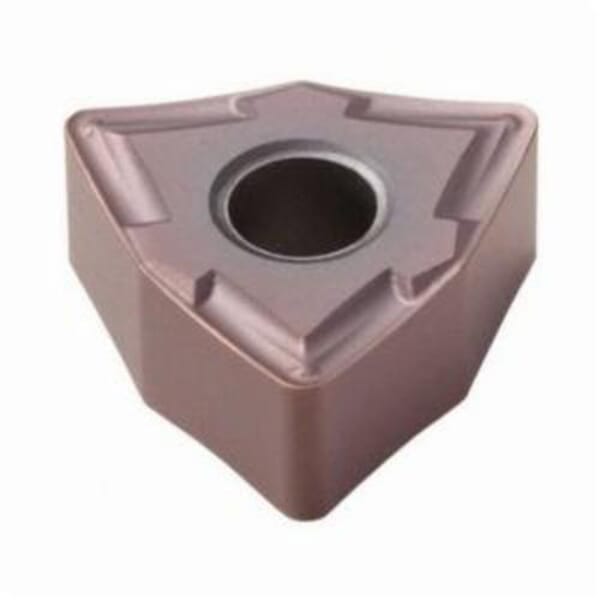

Seco 02754931 Turning Insert, ANSI Code: WNMG332-MF2 TP1030, WNMG Insert, Material Grade: P, 060408 Insert, Trigon Shape, 06 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1030

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02754931 Turning Insert, ANSI Code: WNMG332-MF2 TP1030, WNMG Insert, Material Grade: P, 060408 Insert, Trigon Shape, 06 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1030

ManufacturerSeco

Part #288566937

MFG #02754931

Seco Turning Insert, WNMG Insert, 060408 Insert, Trigon Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturers Grade: TP1030, ANSI Code: WNMG332-MF2 TP1030, ISO Code: WNMG060408-MF2 TP1030, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlSiN Coated, Material Grade: P, For Use On: Steel

$16.32

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: WNMG332-MF2 TP1030
Chipbreaker: MF2
Corner Radius: 0.8 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlSiN Coated
For Use On: Steel
Hole Diameter: 3.81 mm
Included Angle: 80 deg
Inscribed Circle: 9.52 mm
Insert Size: 060408
Insert Style: WNMG
ISO Code: WNMG060408-MF2 TP1030
Manufacturer Name: Seco Tools
Manufacturers Grade: TP1030
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 3.75 mm
Rake: Negative/Positive
Relief Angle: 0 deg
Seat Size: 06
Shape: Trigon
Thickness: 4.76 mm
: Seco Turning Insert, WNMG Insert, 060408 Insert, Trigon Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 06 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturers Grade: TP1030, ANSI Code: WNMG332-MF2 TP1030, ISO Code: WNMG060408-MF2 TP1030, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlSiN Coated, Material Grade: P, For Use On: Steel
