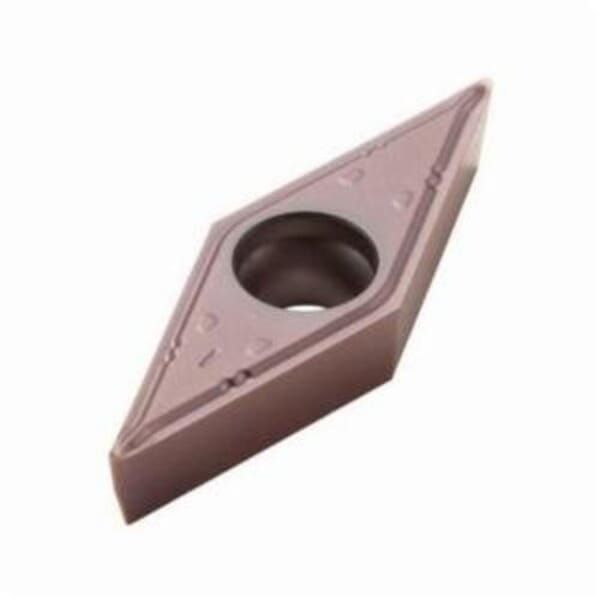

Seco 02754906 Turning Insert, ANSI Code: VBMT21.51-F1 TP1030, VBMT Insert, Material Grade: P, 110204 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1030

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02754906 Turning Insert, ANSI Code: VBMT21.51-F1 TP1030, VBMT Insert, Material Grade: P, 110204 Insert, Diamond Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1030

ManufacturerSeco

Part #288566912

MFG #02754906

Seco Turning Insert, VBMT Insert, 110204 Insert, Diamond, 2.75 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: TP1030, ANSI Code: VBMT21.51-F1 TP1030, ISO Code: VBMT110204-F1 TP1030, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Coated, Material Grade: P, For Use On: Steel

$21.08

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: VBMT21.51-F1 TP1030
Chipbreaker: F1
Corner Radius: 0.4 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlSiN Coated
For Use On: Steel
Hole Diameter: 2.9 mm
Included Angle: 35 deg
Inscribed Circle: 6.35 mm
Insert Size: 110204
Insert Style: VBMT
ISO Code: VBMT110204-F1 TP1030
Manufacturer Name: Seco Tools
Manufacturers Grade: TP1030
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 2.75 mm
Rake: Positive
Relief Angle: 5 deg
Seat Size: 11
Shape: Diamond
Thickness: 2.38 mm
: Seco Turning Insert, VBMT Insert, 110204 Insert, Diamond, 2.75 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: TP1030, ANSI Code: VBMT21.51-F1 TP1030, ISO Code: VBMT110204-F1 TP1030, 35 deg Included Angle, 5 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlSiN Coated, Material Grade: P, For Use On: Steel
