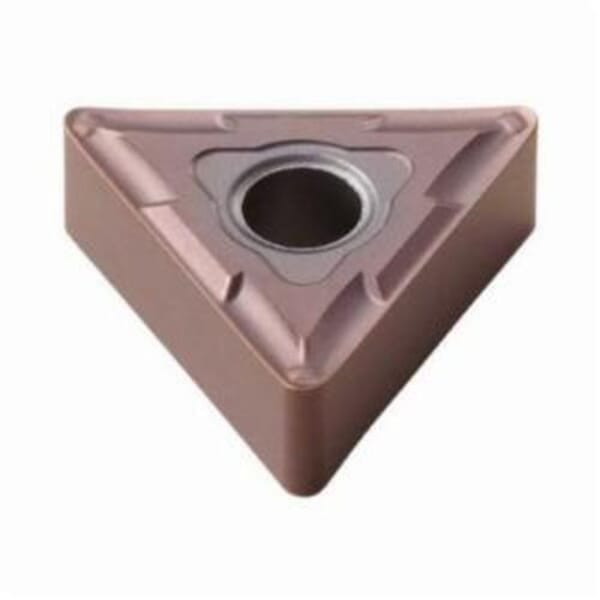

Seco 02754902 Turning Insert, ANSI Code: TNMG332-MF2 TP1030, TNMG Insert, Material Grade: P, 160408 Insert, Triangular Shape, 16 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP1030

ManufacturerSeco

Part #288566908

MFG #02754902

Seco Turning Insert, TNMG Insert, 160408 Insert, Triangular Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16.5 mm Length, 16 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturers Grade: TP1030, ANSI Code: TNMG332-MF2 TP1030, ISO Code: TNMG160408-MF2 TP1030, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlSiN Coated, Material Grade: P, For Use On: Steel

$15.87

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: TNMG332-MF2 TP1030
Chipbreaker: MF2
Corner Radius: 0.8 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: PVD-TiAlSiN Coated
For Use On: Steel
Hole Diameter: 3.81 mm
Included Angle: 60 deg
Inscribed Circle: 9.52 mm
Insert Size: 160408
Insert Style: TNMG
ISO Code: TNMG160408-MF2 TP1030
Length: 16.5 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TP1030
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 3.75 mm
Rake: Negative/Positive
Relief Angle: 0 deg
Seat Size: 16
Shape: Triangular
Thickness: 4.76 mm
: Seco Turning Insert, TNMG Insert, 160408 Insert, Triangular Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16.5 mm Length, 16 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturers Grade: TP1030, ANSI Code: TNMG332-MF2 TP1030, ISO Code: TNMG160408-MF2 TP1030, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlSiN Coated, Material Grade: P, For Use On: Steel
