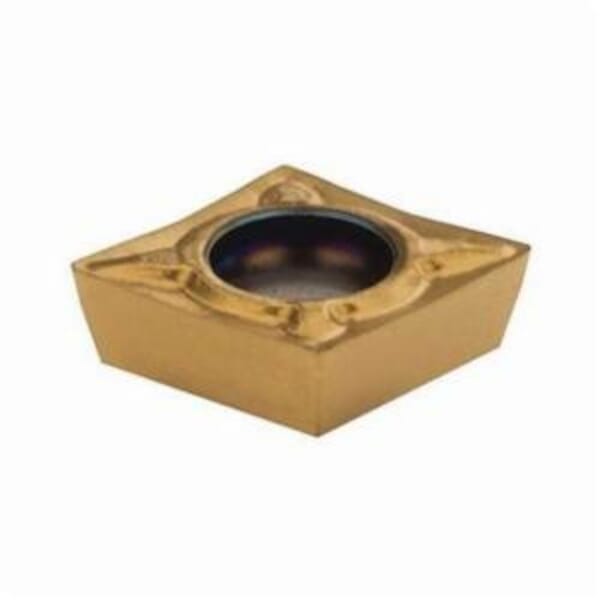

Seco 00064906 Turning Insert, ANSI Code: CPMT32.51-F1 CP200, CPMT Insert, Material Grade: M, S, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: CP200

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00064906 Turning Insert, ANSI Code: CPMT32.51-F1 CP200, CPMT Insert, Material Grade: M, S, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel and Titanium/Super Alloys, Carbide, Manufacturers Grade: CP200

ManufacturerSeco

Part #288564906

MFG #00064906

Seco Turning Insert, CPMT Insert, 09T304 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: CP200, ANSI Code: CPMT32.51-F1 CP200, ISO Code: CPMT09T304-F1 CP200, 80 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys

$14.30

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CPMT32.51-F1 CP200
Chipbreaker: F1
Corner Radius: 0.4 mm
Country of Origin: CZ, SE
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated
For Use On: Stainless Steel and Titanium/Super Alloys
Hole Diameter: 4.5 mm
Included Angle: 80 deg
Inscribed Circle: 9.53 mm
Insert Size: 09T304
Insert Style: CPMT
ISO Code: CPMT09T304-F1 CP200
Manufacturer Name: Seco Tools
Manufacturers Grade: CP200
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 3.5 mm
Rake: Positive
Relief Angle: 11 deg
Seat Size: 09
Shape: Diamond
Thickness: 3.97 mm
: Seco Turning Insert, CPMT Insert, 09T304 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: CP200, ANSI Code: CPMT32.51-F1 CP200, ISO Code: CPMT09T304-F1 CP200, 80 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys
: Video Link

: Manufacturer Name: Seco Tools
ANSI Code: CPMT32.51-F1 CP200
Chipbreaker: F1
Corner Radius: 0.4 mm
Country of Origin: CZ, SE
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated
For Use On: Stainless Steel and Titanium/Super Alloys
Hole Diameter: 4.5 mm
Included Angle: 80 deg
Inscribed Circle: 9.53 mm
Insert Size: 09T304
Insert Style: CPMT
ISO Code: CPMT09T304-F1 CP200
Manufacturer Name: Seco Tools
Manufacturers Grade: CP200
Material: Carbide
Material Grade: M, S
Maximum Depth of Cut: 3.5 mm
Rake: Positive
Relief Angle: 11 deg
Seat Size: 09
Shape: Diamond
Thickness: 3.97 mm
: Seco Turning Insert, CPMT Insert, 09T304 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.53 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 4.5 mm Hole Dia, Manufacturers Grade: CP200, ANSI Code: CPMT32.51-F1 CP200, ISO Code: CPMT09T304-F1 CP200, 80 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, S, For Use On: Stainless Steel and Titanium/Super Alloys
